SKU: SLC1.1/4AR-RHP

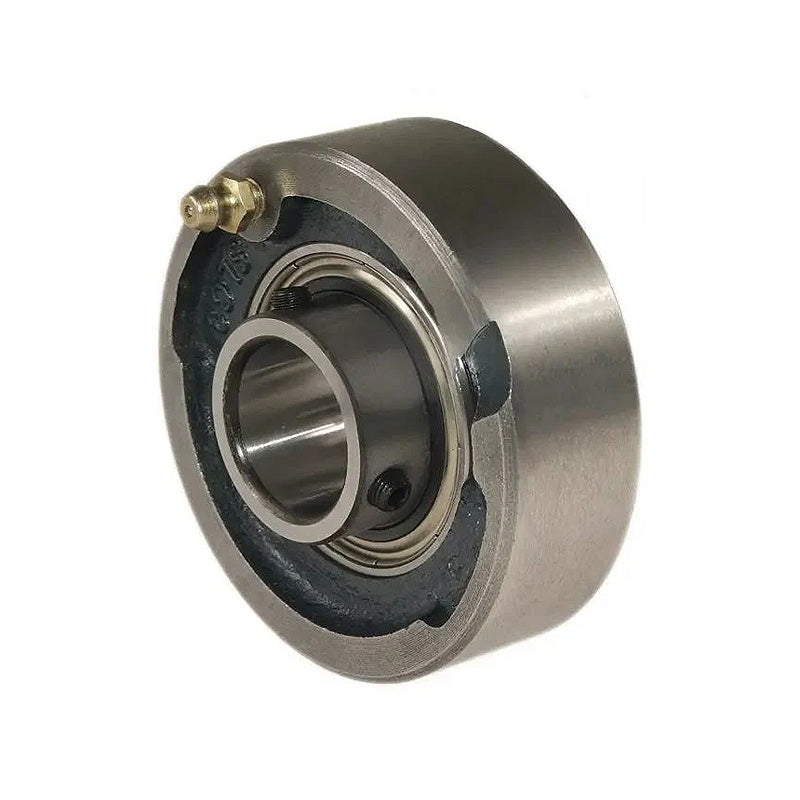

RHP SLC1-1/4AR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter

RHP SLC1-1/4AR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 3.501 inch
A 1.094 inch
A1 1.422 inch
A2 1.597 inch
A3 1.732 inch
B 1.5 inch
B1 1.229 inch
B2 1.405 inch
B3 1.906 inch
s 0.627 inch
s1 0.356 inch
s2 0.721 inch
d1 1.575 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
