SKU: SL70DEC-RHP

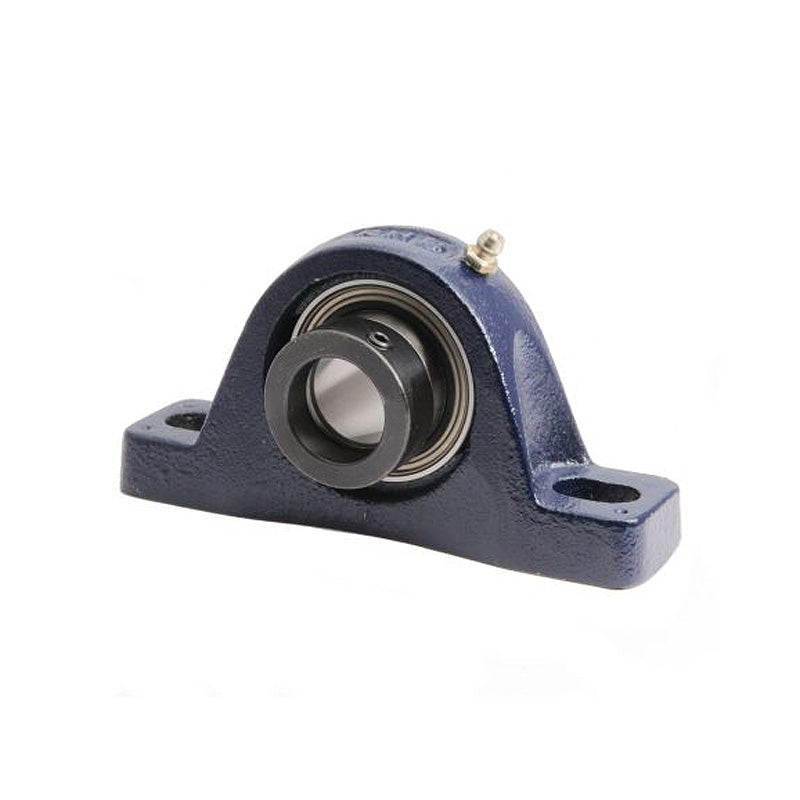

RHP SL70DEC Two Bolt Cast Iron Pillow Block and 70mm Bore Eccentric Collar Full Width Insert
RHP SL70DEC Two Bolt Cast Iron Pillow Block and 70mm Bore Eccentric Collar Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- SL
- Bolt Hole Centres:
- 8.689-9.563mm
Technical
Technical
| Bore | 70mm |
|---|---|
| L | 11.748 inch |
| H | 3.25 inch |
| H1 | 1.374 inch |
| H2 | 6.563 inch |
| J max | 9.563 inch |
| J min | 8.689 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.189 inch |
| B3 | 3.611 inch |
| s2 | 1.471 inch |
| d2 | 4 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1075-70DECG+insonly">1075-70DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
