SKU: SL1.1/2A-RHP
RHP SL1-1/2A Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Flat Back Insert
RHP SL1-1/2A Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Flat Back Insert
Out of stock
Share this product
Description
Description
|
RHP SL-A Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SL
- Bolt Hole Centres:
- 5-5.827 inch
Technical
Technical

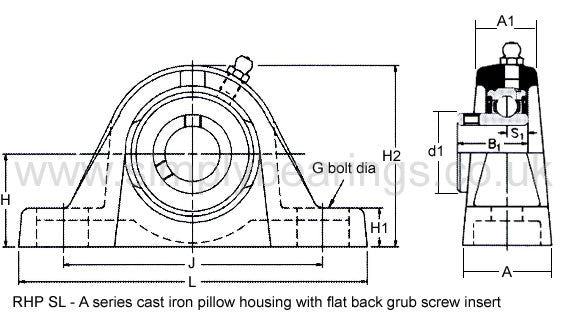

| Bore | 1-1/2 inch |
|---|---|
| L | 7.106 inch |
| H | 1.937 inch |
| H1 | 0.728 inch |
| H2 | 3.878 inch |
| J max | 5.827 inch |
| J min | 5 inch |
| G | 0.5 inch |
| A | 2.008 inch |
| A1 | 1.358 inch |
| B1 | 1.621 inch |
| s1 | 0.435 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-1/2G+insonly">1245-1-1/2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
