SKU: SILQG80ES-SKF

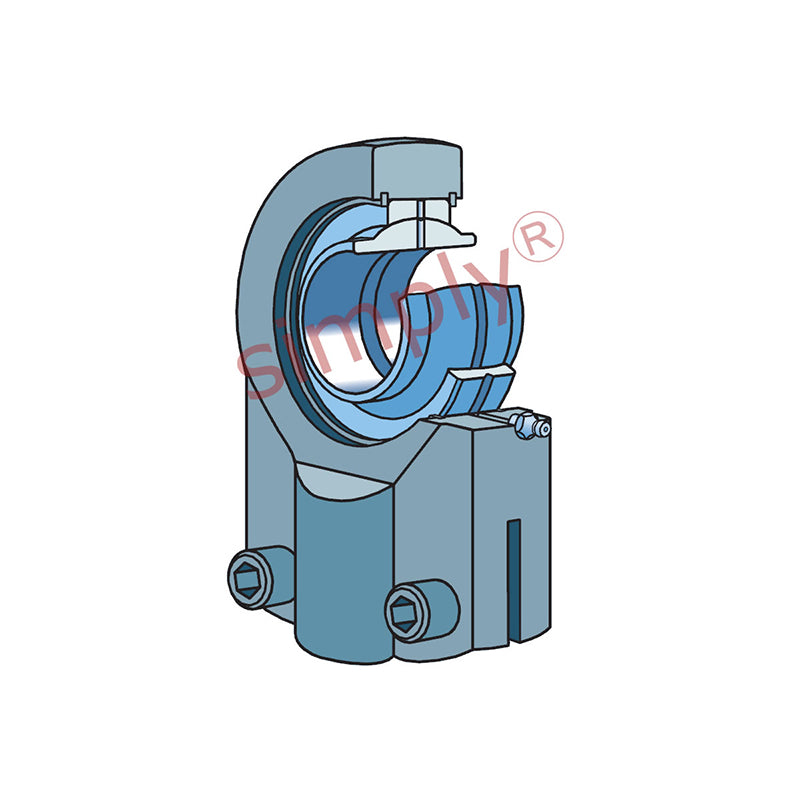

SKF SILQG80ES Left Hand Steel / Steel Clamp Type Female Rod End M64x3 Thread
SKF SILQG80ES Left Hand Steel / Steel Clamp Type Female Rod End M64x3 Thread
Out of stock
Description
Description
|
SKF SIQG..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head, this will serve to extend it's life cycle. Dependent on installation design the lubricant may also be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized rod end bearings. Sizes12 to 63mm are made of heat treatable C45V steel, sizes 70 to 200mm are made from EN-GJS-400-15 Steel and will operate within -50deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference. This series has an extended inner raceway and benefits from a shorter thread and a more compact space saving design. The SIQG12ESA can only be lubricated from the lubrication facility provided on the housing, there is no groove provided on the inner race. Application: Suitable for hydraulic cylinders, the slotted shank enables the rod end to be secured by tightening bolts. Benefits: Re-lubricate-able |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M64x3
- Thread Direction:
- Left Hand
- Inside Diameter:
- 80mm
Technical
Technical
| d | 80mm |
|---|---|
| d2 max | 180mm |
| G 6H | M64x3 |
| B | 80mm |
| C1 max | 69mm |
| h1 | 180mm |
| a | 4deg |
| Dynamic load C | 400 kN |
| Static load Co | 600 kN |
| Weight | 14.5 kg |
| dk | 105mm |
| d4 | 93mm |
| l3 min | 86mm |
| l4 max | 272mm |
| l7 min | 77mm |
| N max | 150mm |
| N1 max | 50mm |
| r1 min | 1mm |
| Size bolt with internal hexagon | M20 |
