SKU: SIL70TXE-2LS-SKF

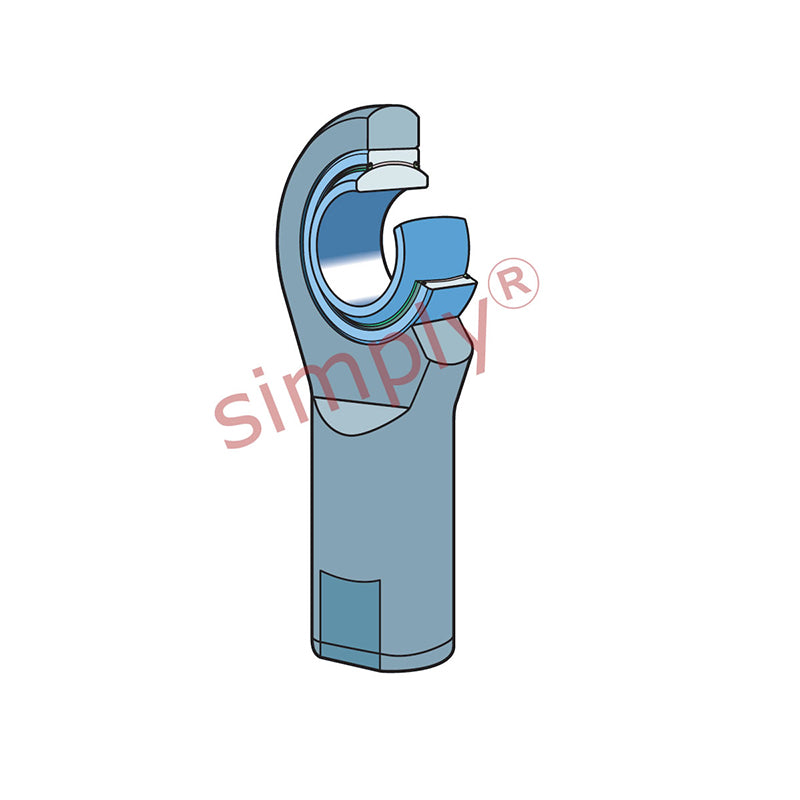

SKF SIL70TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M72x4 Thread
SKF SIL70TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M72x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M72x4
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 70mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 70mm |
|---|---|
| d2 max | 162mm |
| G 6H | M72x4 |
| B | 49mm |
| C1 max | 43mm |
| h1 | 265mm |
| a | 6deg |
| Dynamic load C | 880 kN |
| Static load Co | 530 kN |
| Weight | 10.5 kg |
| dk | 92mm |
| d4 | 92mm |
| l3 min | 80mm |
| l4 max | 349mm |
| l5 | 40mm |
| l7 min | 85mm |
| r1 min | 1mm |
| w h14 | 80mm |
