SKU: SIKB10F-SKF

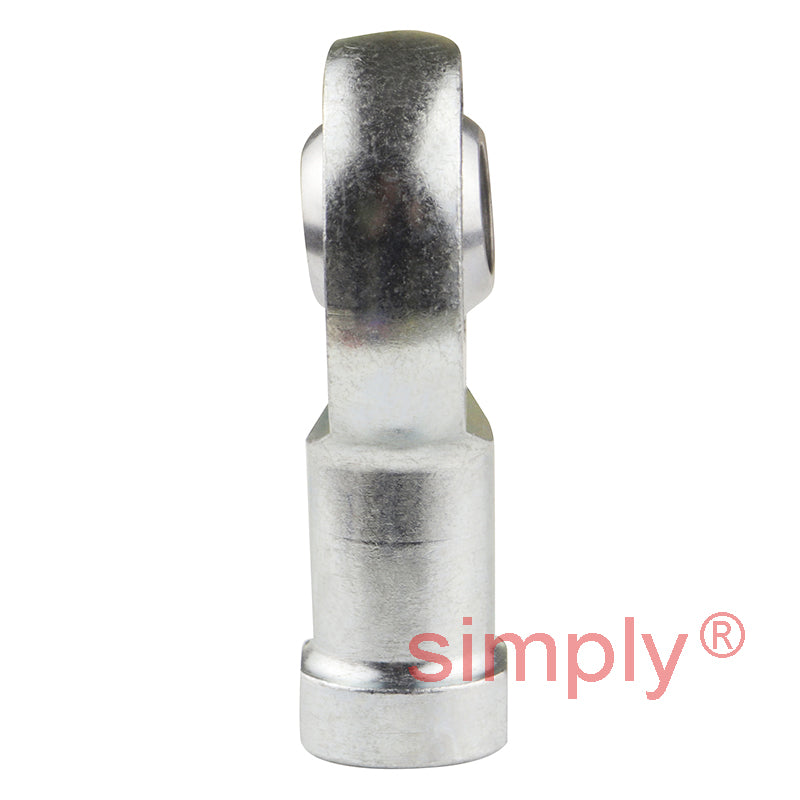

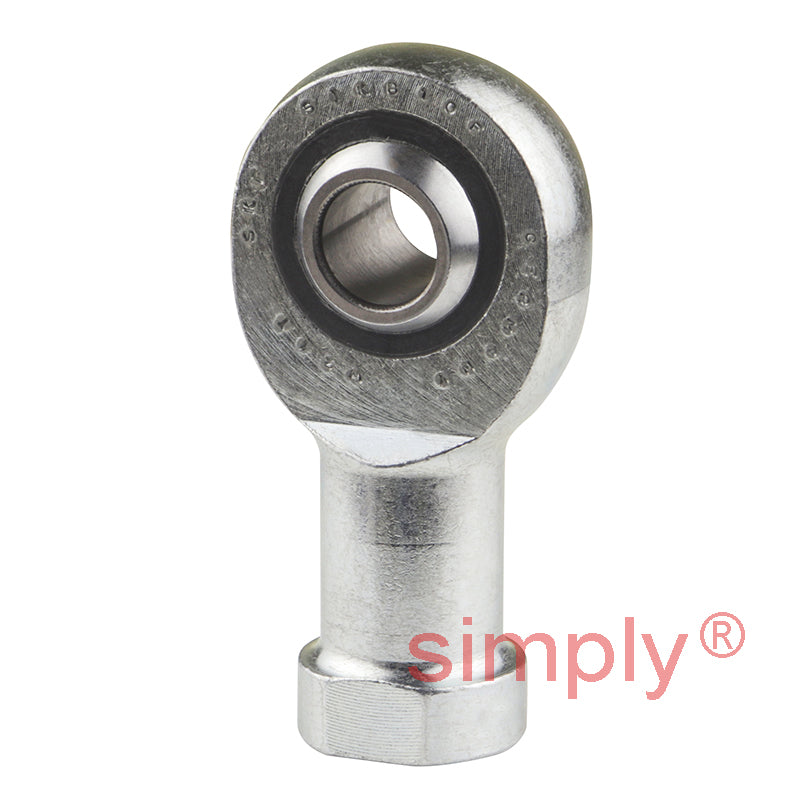

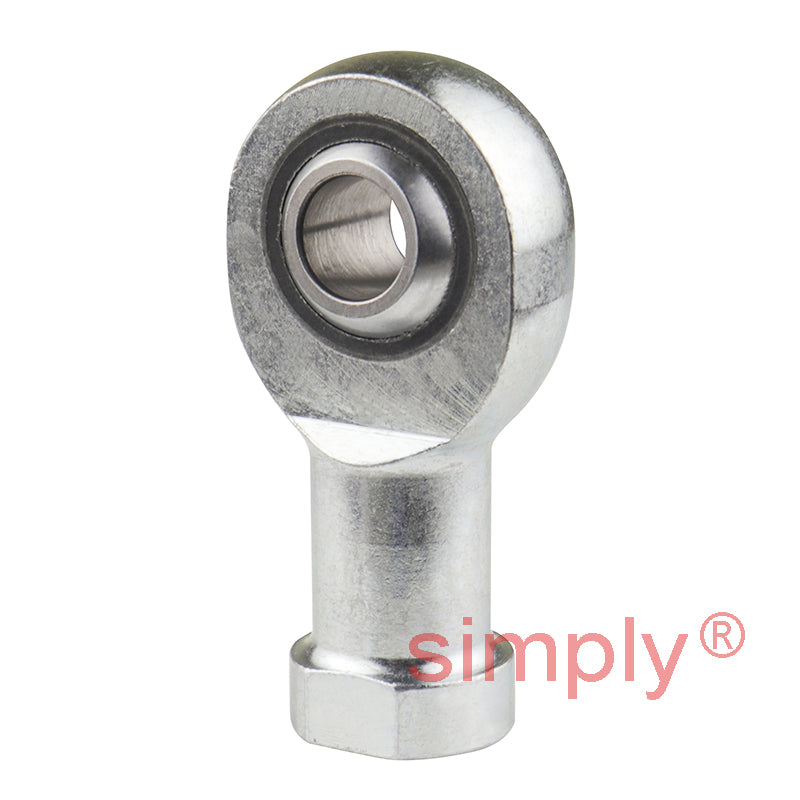

SKF SIKB10F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10 Thread
- Regular price
- €31,25 ex VAT
- Sale price
- €31,25
- Regular price
-
In stock
Quantity Price Breaks
10
€27,81
19
€26,25
29
€25,94
39
€25,63
49
€25,31
74
€25,00
99
€23,44
199
€23,13
249
€22,81
499
€22,50
999
€21,88
SKU:
SIKB10F-SKF
SKF SIKB10F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10 Thread
- Regular price
- €31,25 ex VAT
- Sale price
- €31,25
- Regular price
-
Description
|

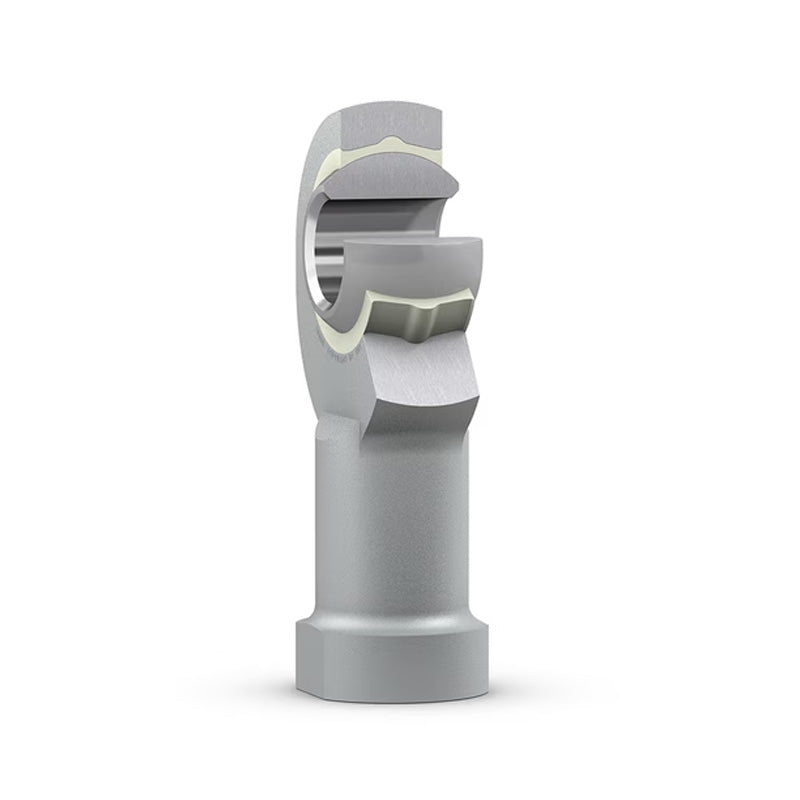

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
