SKU: SF300CP0

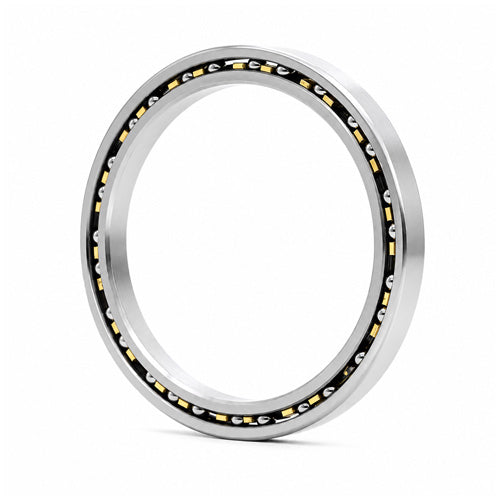

Silverthin SF300CP0 Thin Section Radial Contact Ball Bearing 30x31.5x0.75 inch - Allow 7-10 Days
Silverthin SF300CP0 Thin Section Radial Contact Ball Bearing 30x31.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF300CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 800.1mm = 31-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard

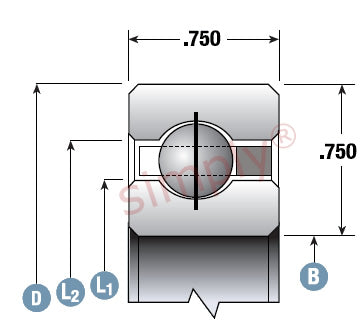

Technical
Technical
| B | 30 inch |
|---|---|
| D | 31.5 inch |
| Width | 0.75 inch |
| L1 | 30.555 inch |
| L2 | 30.945 inch |
| L3 | 31.075 inch |
| Static Radial Load | 154.362 kN |
| Dynamic Radial Load | 42.218 kN |
| Weight | 5.8967 kg |
