SKU: SER.211-35

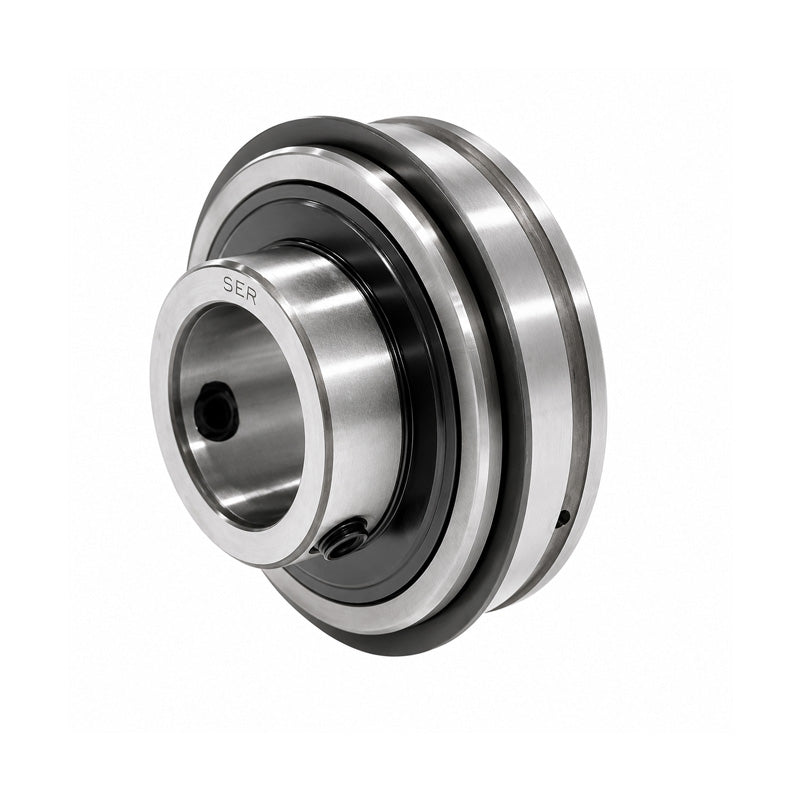

SER211-35 Imperial Bearing Insert and Snap Ring 2-3/16 inch Bore 100mm Outside Dia
SER211-35 Imperial Bearing Insert and Snap Ring 2-3/16 inch Bore 100mm Outside Dia
Out of stock
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Style:
- SER
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 30.2mm |
| n | 22.2mm |
| m | 33.4mm |
| E | 24.22mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.12mm |
| J | 3.28mm |
| P | 106.5mm |
| G | 9.5mm |
| Grub screw | 3/8"-24UNF |
| Weight | 1.28 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
