SKU: SER.209-27

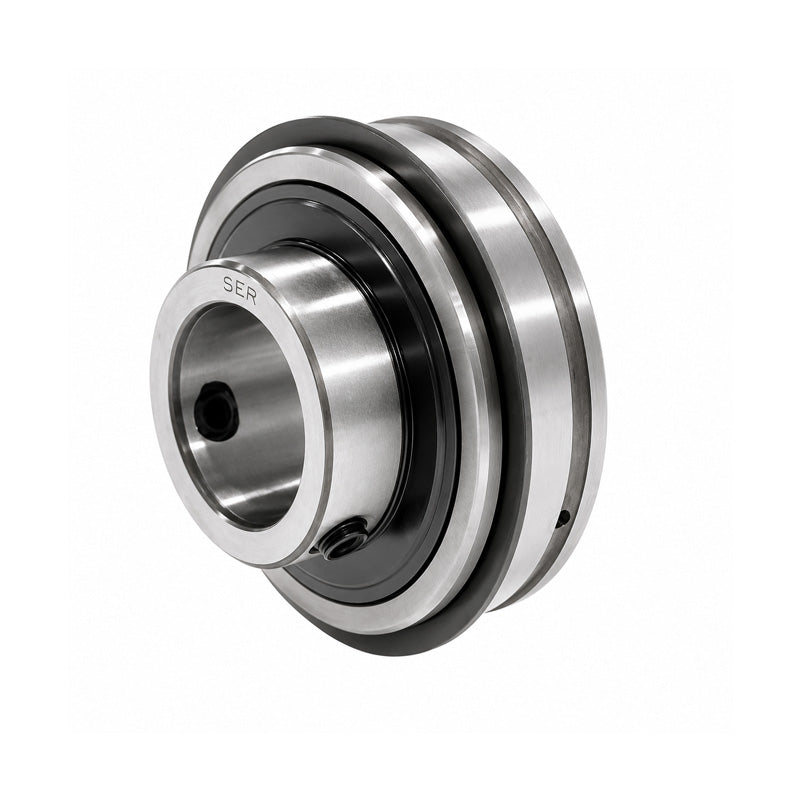

SER209-27 Imperial Bearing Insert and Snap Ring 1-11/16 inch Bore 85mm Outside Dia
SER209-27 Imperial Bearing Insert and Snap Ring 1-11/16 inch Bore 85mm Outside Dia
Out of stock
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- SER
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 27.8mm |
| n | 19mm |
| m | 30.2mm |
| E | 22.62mm |
| a | 1.65mm |
| h | 6.4mm |
| R | 8.72mm |
| J | 3.28mm |
| P | 91.6mm |
| G | 8mm |
| Grub screw | 5/16"x24UNF |
| Weight | 0.90 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
