SKU: SCHB1.1/8-RHP

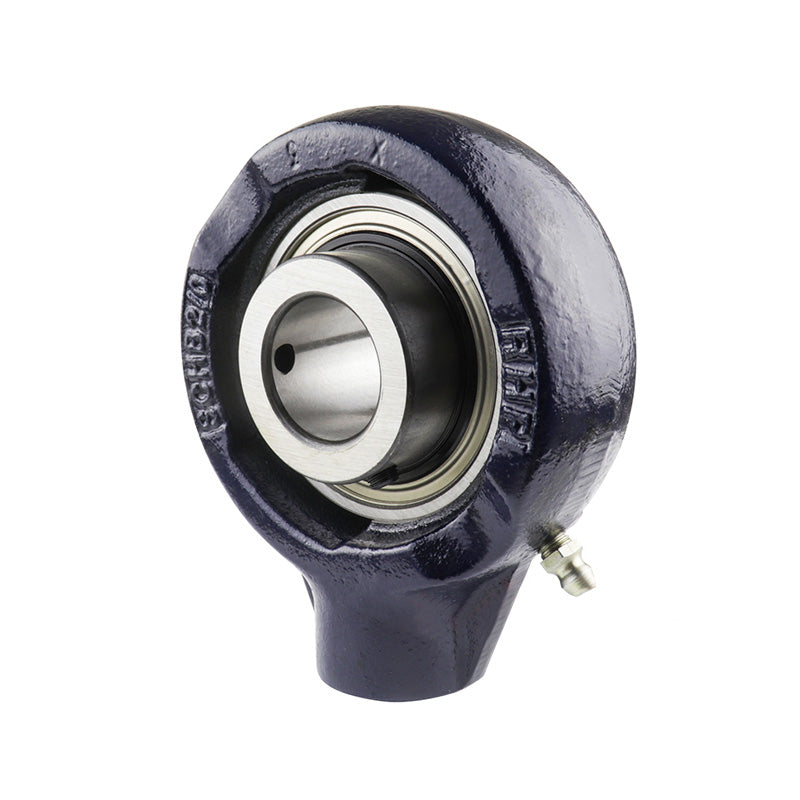

RHP SCHB1-1/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-1/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB1-1/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-1/8 inch Bore Insert 89mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 89mm
- Style:
- SCHB
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| G1 | 0.63 inch |
| L | 3.504 inch |
| H | 4.232 inch |
| H1 | 2.437 inch |
| Threads | 1/2 BSP |
| A | 1.319 inch |
| A1 | 0.875 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8G+insonly">1030-1-1/8G Click Here</a> |
| Casting group | 2/0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
