SKU: SCH70-RHP

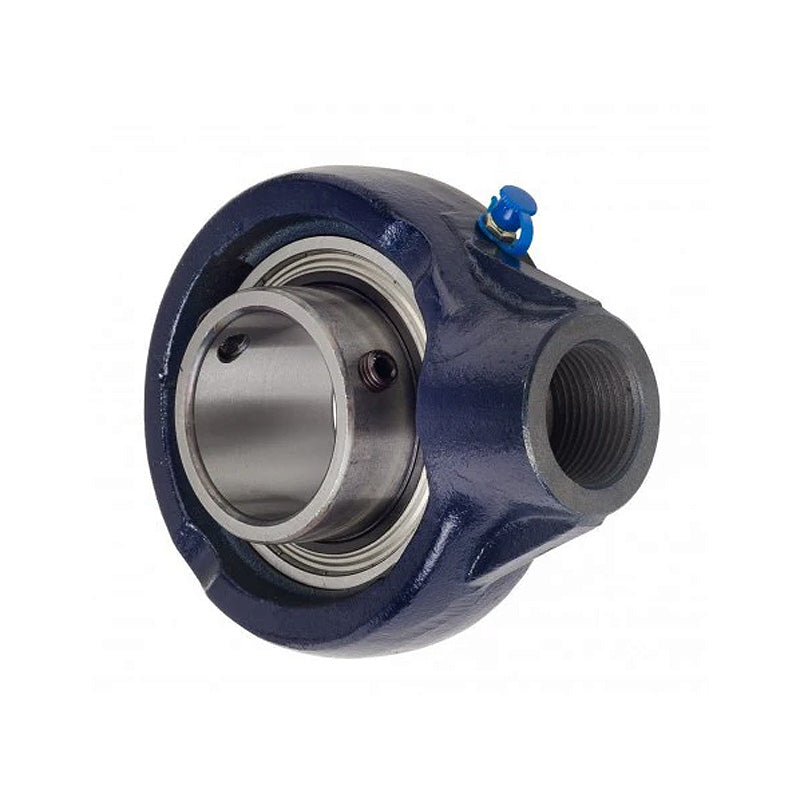

RHP SCH70 Metric Thread Cast Iron Hanger Bearing Unit and 70mm Bore Insert 165mm Outside Diameter
RHP SCH70 Metric Thread Cast Iron Hanger Bearing Unit and 70mm Bore Insert 165mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 165mm
- Style:
- SCH
Technical
Technical
| Bore | 70mm |
|---|---|
| G1 | 32mm |
| L | 165mm |
| H | 200.6mm |
| H1 | 117.5mm |
| Threads | M48X5 Metric |
| A | 70mm |
| A1 | 34.94mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
