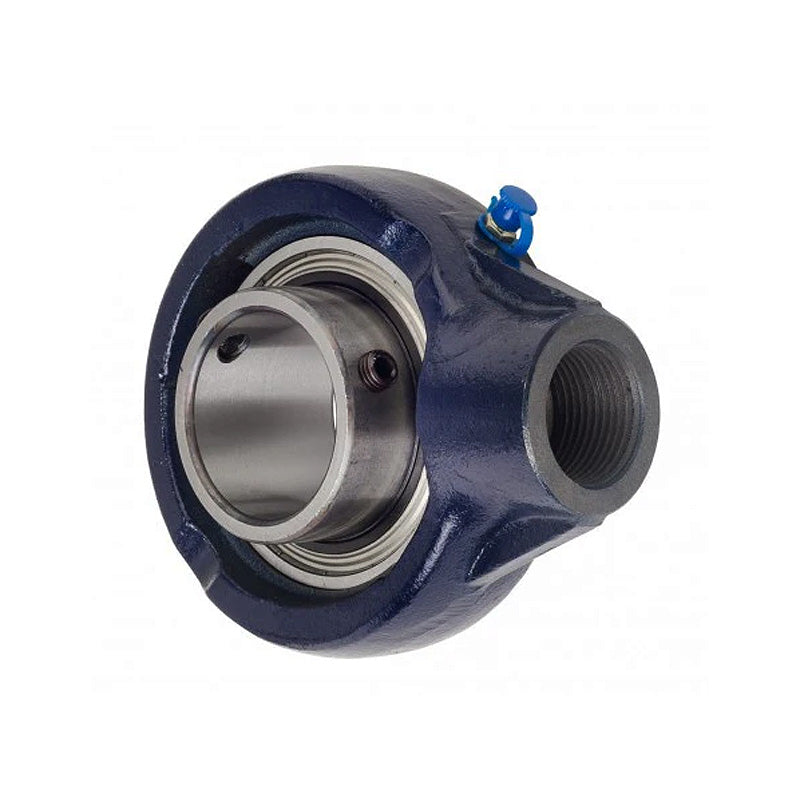

RHP SCH1-7/16 Metric Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter

RHP SCH1-7/16 Metric Thread Cast Iron Hanger Bearing Unit and 1-7/16 inch Bore Insert 107mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-7/16 inch
G1 0.748 inch
L 4.213 inch
H 5.02 inch
H1 2.874 inch
Threads M24X3 Metric
A 1.555 inch
A1 1.094 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
