SKU: SB090AR0

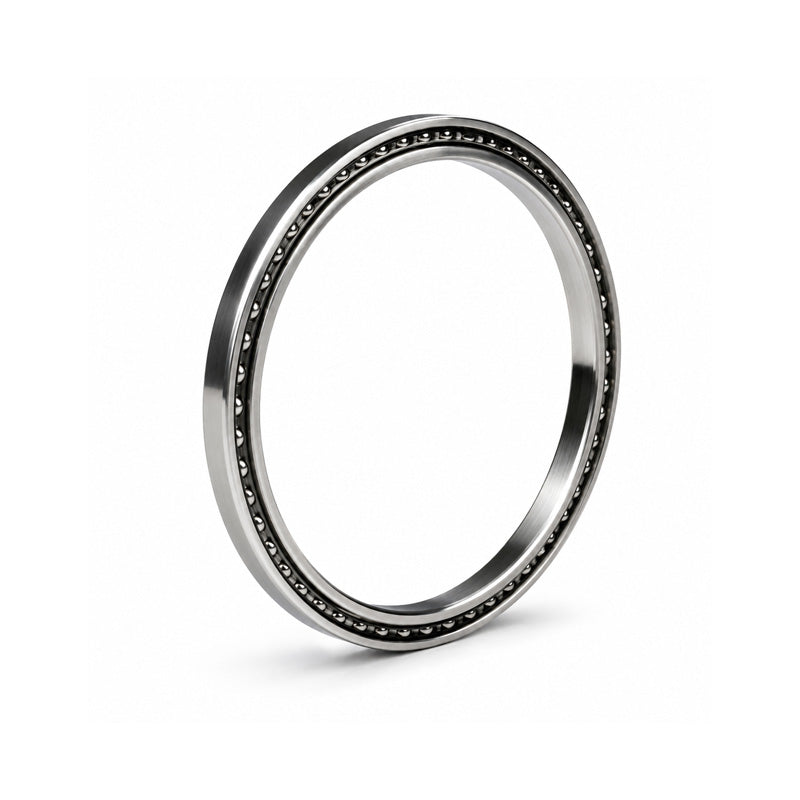

Silverthin SB090AR0 Thin Section Angular Contact Ball Bearing 9x9.625x0.312 inch - Allow 7-10 Days
Silverthin SB090AR0 Thin Section Angular Contact Ball Bearing 9x9.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB090AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 228.6mm = 9 inch
- Outside Diameter:
- 244.48mm = 9-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 9 inch |
|---|---|
| D | 9.625 inch |
| Width | 0.312 inch |
| L1 | 9.231 inch |
| L2 | 9.393 inch |
| L3 | 9.451 inch |
| Static Radial Load | 19.608 kN |
| Dynamic Radial Load | 5.44 kN |
| Static Thrust Load | 56.51 kN |
| Dynamic Thrust Load | 15.613 kN |
| Weight | 0.2994kg |
