SKU: SB.212-36

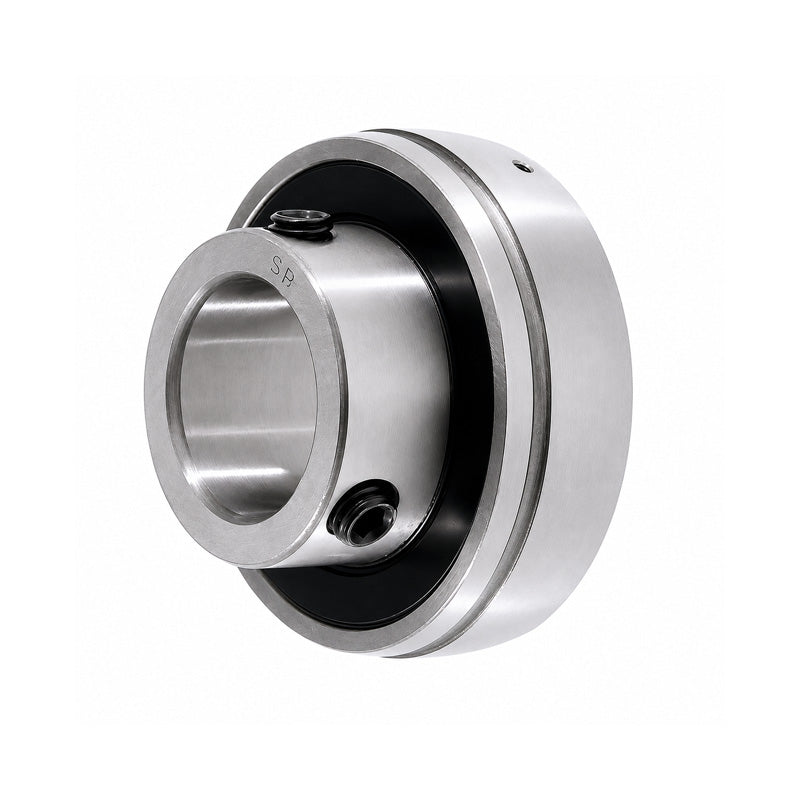

SB212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
SB212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
Out of stock
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
- Style:
- SB
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| Be | 24mm |
| D | 110mm |
| Bi | 53.7mm |
| n | 14.9mm |
| m | 38.8mm |
| G | 9.8mm |
| h | 8mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 3300 kgf |
