SKU: SALF207-21

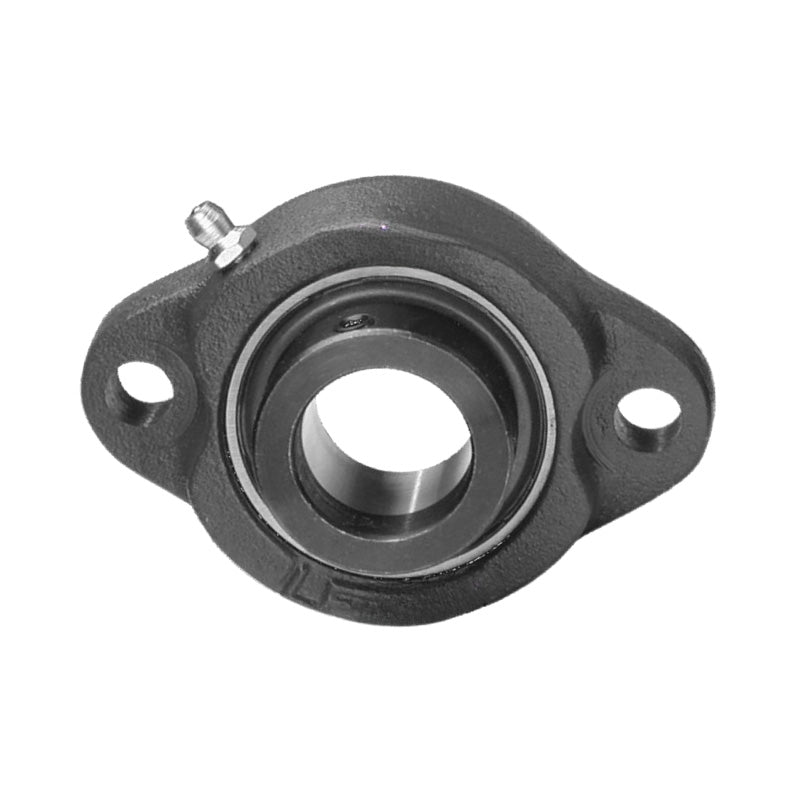

SALF207-21 Imperial Two Bolt Cast Iron Oval Housing with 1-5/16 inch Bore Eccentric Collar Insert
SALF207-21 Imperial Two Bolt Cast Iron Oval Housing with 1-5/16 inch Bore Eccentric Collar Insert
Out of stock
Description
Description
|
SALF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- SALF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 89mm |
| i | 13mm |
| s | 12mm |
| g | 13mm |
| l | 24mm |
| Bolt | M10 |
| Z | 42.4mm |
| B | 38.9mm |
| n | 9.5mm |
| Weight | 0.9 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
