SKU: SAFDC2526/4-7/16-SKF

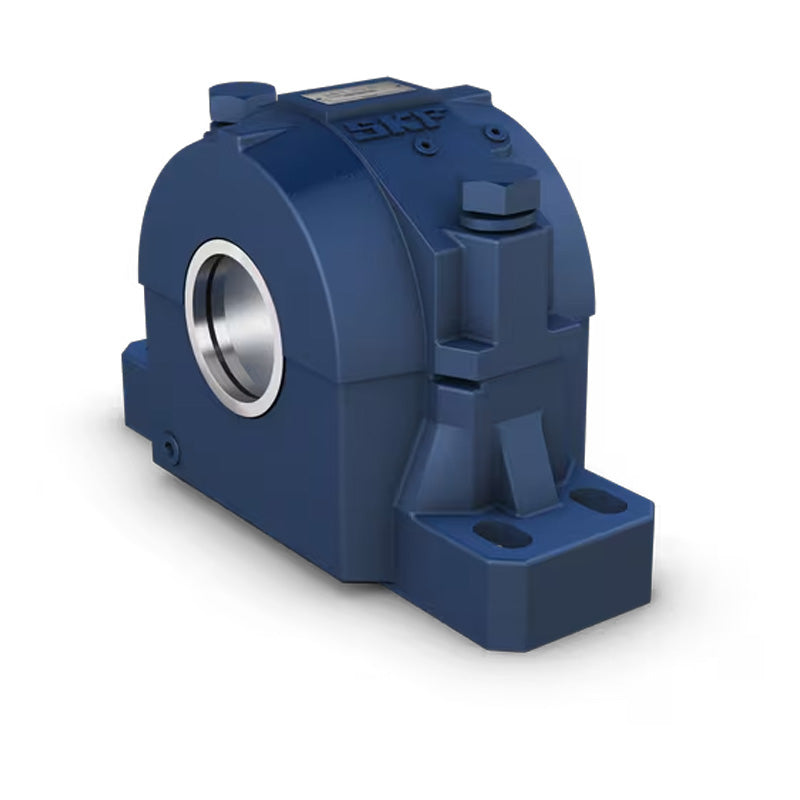

SKF SAFDC2526/4-7/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFDC2526/4-7/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 112.71mm = 4.437 (4-7/16) inch
Technical
Technical
| Housing | SAFD526 |
|---|---|
| Triple Ring Seal | LOR117 |
| Taconite Service Seal | TER526/4-7/16 |
| Bearing | C2226K |
| Adaptor Sleeve | HA3126L |
| Fixing Rings (2 required) | FRB13/230 |
| da | 4-7/16 inch |
| A | 7-3/4 inch = 197mm |
| A1 | 5-1/8 inch = 130mm |
| A2 | 8 inch = 203mm |
| A3 | 11 inch = 280mm |
| H | 11-3/4 inch = 298mm |
| H1 | 6 inch = 152.4mm |
| H2 | 2-3/8 inch = 60mm |
| H3 | 2-11/32 inch = 59mm |
| L | 18-3/8 inch = 467mm |
| J max | 16 inch = 406mm |
| J min | 14-5/8 inch = 371mm |
| J1 | 3-1/4 inch = 83mm |
| Bolts (required) G | (4) 7/8 inch = 24mm |
| End Plug | EPR15 |
| Weight | 65.5 kg |
