SKU: SAFDC2515/2-7/16-SKF

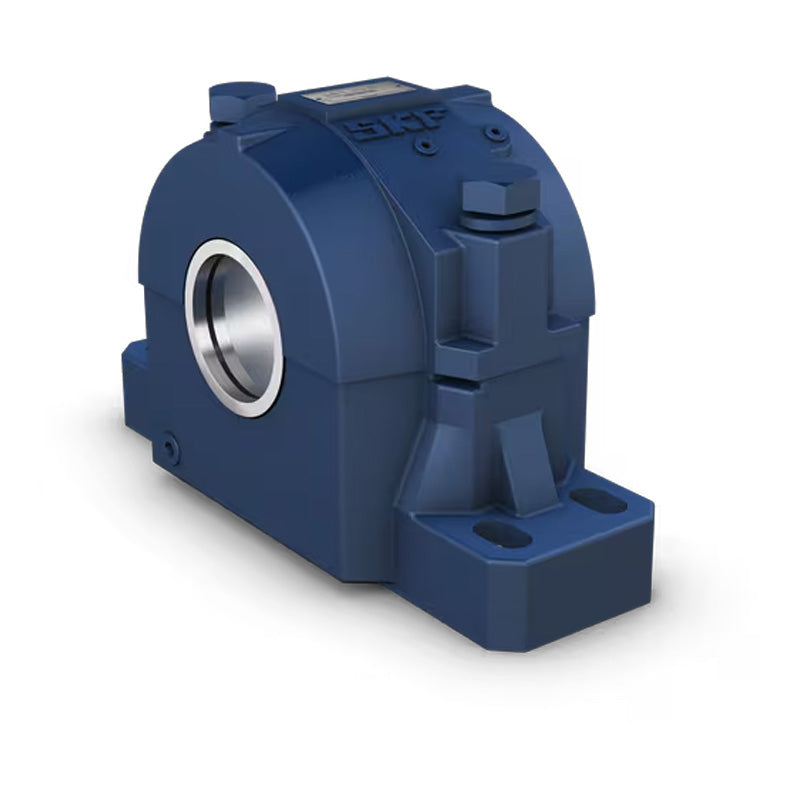

SKF SAFDC2515/2-7/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFDC2515/2-7/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
Technical
Technical
| Housing | SAFD515 |
|---|---|
| Triple Ring Seal | LOR37 |
| Taconite Service Seal | TER515/2-7/16 |
| Bearing | C2215K |
| Adaptor Sleeve | HA315E |
| Fixing Rings (2 required) | FRB5/130 |
| da | 2-7/16 inch |
| A | 4-5/8 inch = 117mm |
| A1 | 3-1/8 inch = 79mm |
| A2 | 4-3/4 inch = 121mm |
| A3 | 7-3/4 inch = 197mm |
| H | 6-3/8 inch = 162mm |
| H1 | 3-1/4 inch = 82.55mm |
| H2 | 1-1/8 inch = 29mm |
| H3 | 1-1/8 inch = 29mm |
| L | 11-1/4 inch = 286mm |
| J max | 9-5/8 inch = 244mm |
| J min | 8-5/8 inch = 219mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| End Plug | EPR7 |
| Weight | 12.9 kg |
