SKU: SAFDC2509/1-1/2-SKF

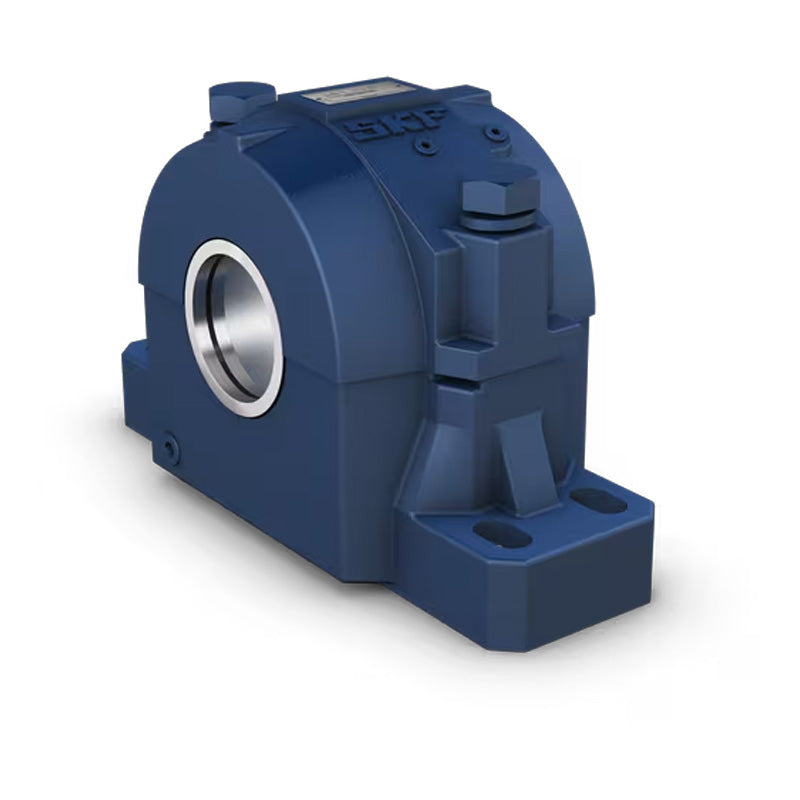

SKF SAFDC2509/1-1/2 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFDC2509/1-1/2 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Housing | SAFD509 |
|---|---|
| Triple Ring Seal | LER18 |
| Bearing | C2209K |
| Adaptor Sleeve | HE309E |
| Fixing Rings (2 required) | FRB3.5/85 |
| da | 1-1/2 inch |
| A | 3-7/16 inch = 87mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-5/8 inch = 92mm |
| H | 4-3/8 inch = 111mm |
| H1 | 2-1/4 inch = 57.15mm |
| H2 | 13/16 inch = 21mm |
| H3 | 31/32 inch = 25mm |
| L | 8-1/4 inch = 210mm |
| J max | 7 inch = 178mm |
| J min | 6-1/4 inch = 159mm |
| Bolts (required) G | (2) 1/2 inch = 12mm |
| End Plug | EPR3 |
| Weight | 5.5 kg |
