SKU: SAFD520-SKF

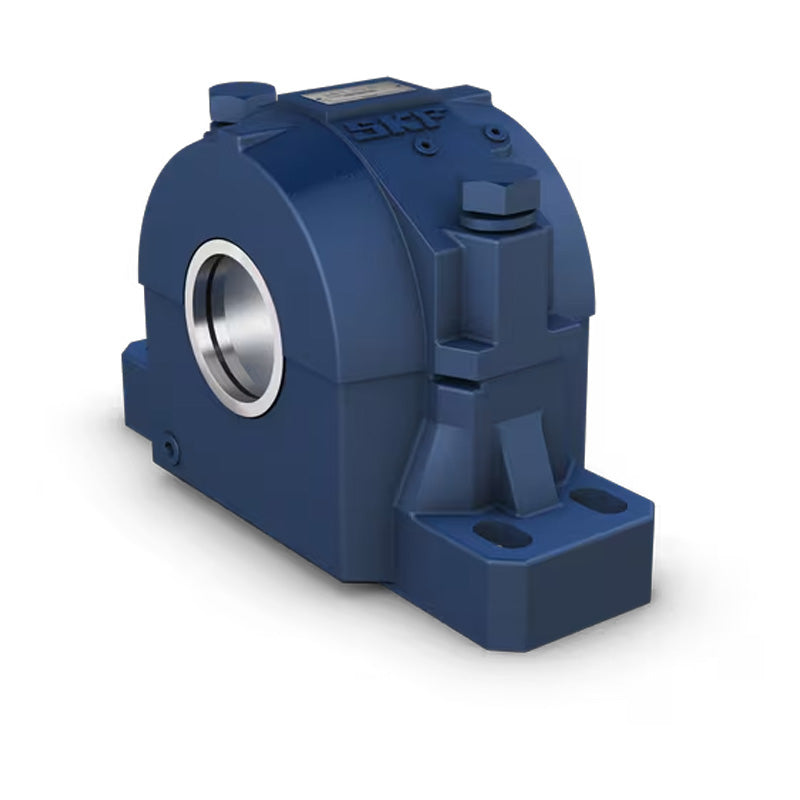

SKF SAFD520 Ductile Iron Split Pillow Block Housing
SKF SAFD520 Ductile Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SAFD Split Plummer Block Housings: SAFD split plummer block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. These housings are made of ductile iron (spheroidal graphite cast iron) and consist of a cap and base. They allow the incorporated bearings to achieve maximum service life with less need for maintenance. Benefits: Simple mounting and dismounting, designed to accommodate both grease and oil lubrication. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| A | 6 inch = 152mm |
|---|---|
| A1 | 4-3/8 inch = 111mm |
| A2 | 6-1/8 inch = 156mm |
| A3 | 9 inch = 230mm |
| H | 8-3/4 inch = 222mm |
| H1 | 4-1/2 inch = 114.3mm |
| H2 | 1-3/4 inch = 44mm |
| H3 | 1-21/32 inch = 42mm |
| L | 15-1/4 inch = 387mm |
| J max | 13-1/8 inch = 333mm |
| J min | 11-5/8 inch = 295mm |
| Bolts (required) | (2) 7/8 inch = 24mm |
