SKU: SAFD2511/1-15/16-SKF

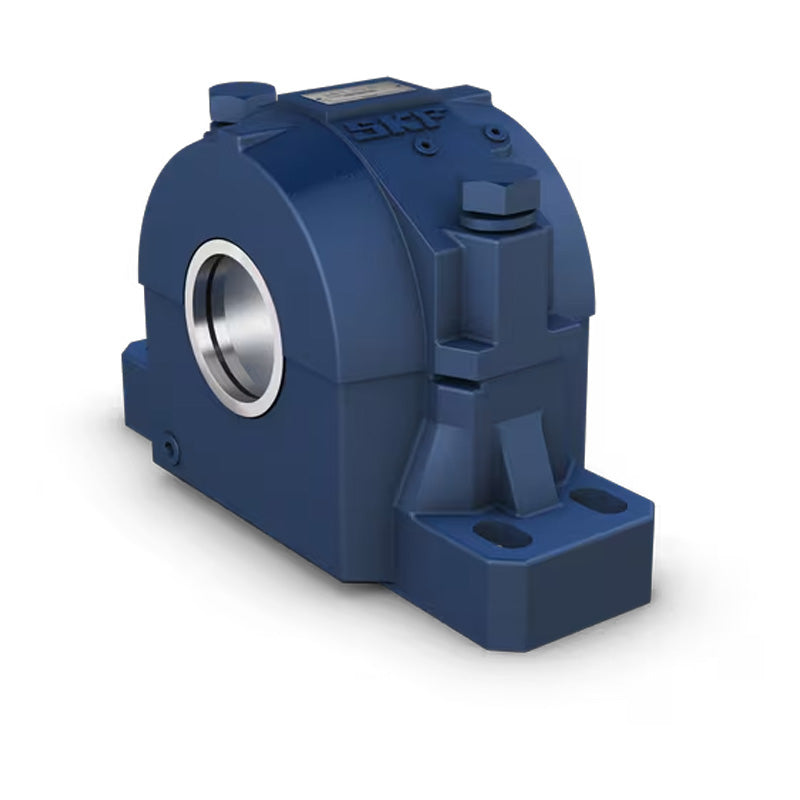

SKF SAFD2511/1-15/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD2511/1-15/16 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
Technical
Technical
| Housing | SAFD511 |
|---|---|
| Triple Ring Seal | LER24 |
| Taconite Service Seal | TER511/1-15/16 |
| Bearing | 2211EK |
| Adaptor Sleeve | HA311 |
| Fixing Rings (2 required) | FRB4/100 |
| da | 1-15/16 inch |
| A | 3-3/4 inch = 95mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 3-7/8 inch = 98mm |
| A3 | 7 inch = 178mm |
| H | 5-1/4 inch = 133mm |
| H1 | 2-3/4 inch = 69.85mm |
| H2 | 15/16 inch = 24mm |
| H3 | 15/16 inch = 30mm |
| L | 9-5/8 inch = 245mm |
| J max | 7-7/8 inch = 200mm |
| J min | 7-3/8 inch = 187mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| End Plug | EPR5 |
| Weight | 7.6 kg |
