SKU: SAFD23536/6-1/2-SKF

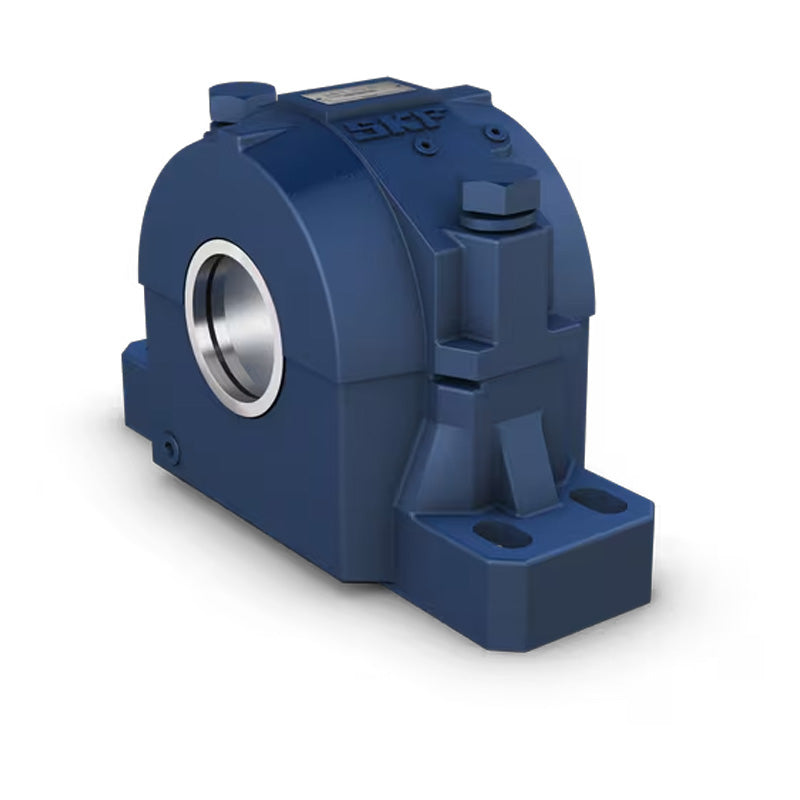

SKF SAFD23536/6-1/2 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD23536/6-1/2 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 165.1mm = 6.5 (6-1/2) inch
Technical
Technical
| Housing | SAFD536 |
|---|---|
| Triple Ring Seal | LOR149 |
| Taconite Service Seal | TER536/6-1/2 |
| Bearing | 23236CCK/W33 |
| Adaptor Sleeve | HE2336 |
| Fixing Rings (2 required) | 35072-36 |
| da | 6-1/2 inch |
| A | 9-5/8 inch = 244mm |
| A1 | 7-1/8 inch = 181mm |
| A2 | 10 inch = 254mm |
| A3 | 13 inch = 330mm |
| H | 14-7/8 inch = 378mm |
| H1 | 7-1/2 inch = 190.5mm |
| H2 | 3 inch = 76mm |
| H3 | 2-3/8 inch = 60mm |
| L | 26-3/4 inch = 679mm |
| J max | 23-5/8 inch = 600mm |
| J min | 20-7/8 inch = 530mm |
| J1 | 4-5/8 inch = 117mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| End Plug | EPR19 |
| Weight | 153 kg |
