SKU: SAFD23530/5-1/4-SKF

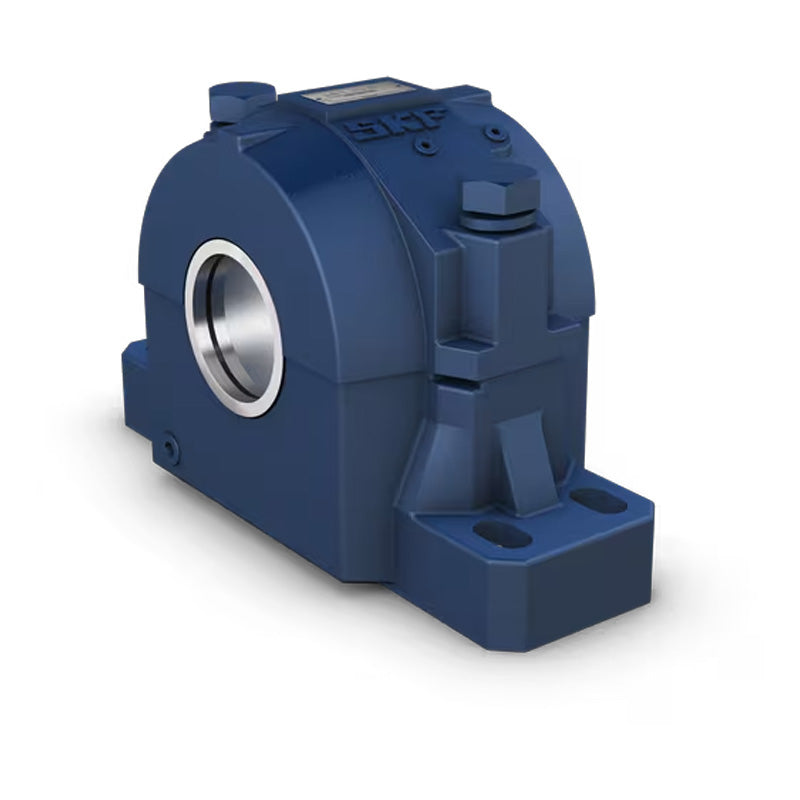

SKF SAFD23530/5-1/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD23530/5-1/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 133.35mm = 5.25 (5-1/4) inch
Technical
Technical
| Housing | SAFD530 |
|---|---|
| Triple Ring Seal | LOR126 |
| Taconite Service Seal | TER530/5-1/4 |
| Bearing | 23230CCK/W33 |
| Adaptor Sleeve | HE2330 |
| Fixing Rings (2 required) | FRB5/270 |
| da | 5-1/4 inch |
| A | 8-1/8 inch = 206mm |
| A1 | 6-1/4 inch = 159mm |
| A2 | 8-3/8 inch = 213mm |
| A3 | 11-3/8 inch = 289mm |
| H | 12-1/2 inch = 318mm |
| H1 | 6-5/16 inch = 160.34mm |
| H2 | 2-1/2 inch = 64mm |
| H3 | 2 inch = 51mm |
| L | 21-1/4 inch = 540mm |
| J max | 18-1/4 inch = 464mm |
| J min | 17 inch = 432mm |
| J1 | 3-3/4 inch = 95mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| End Plug | EPR16 |
| Weight | 102 kg |
