SKU: SAFD23240-SKF

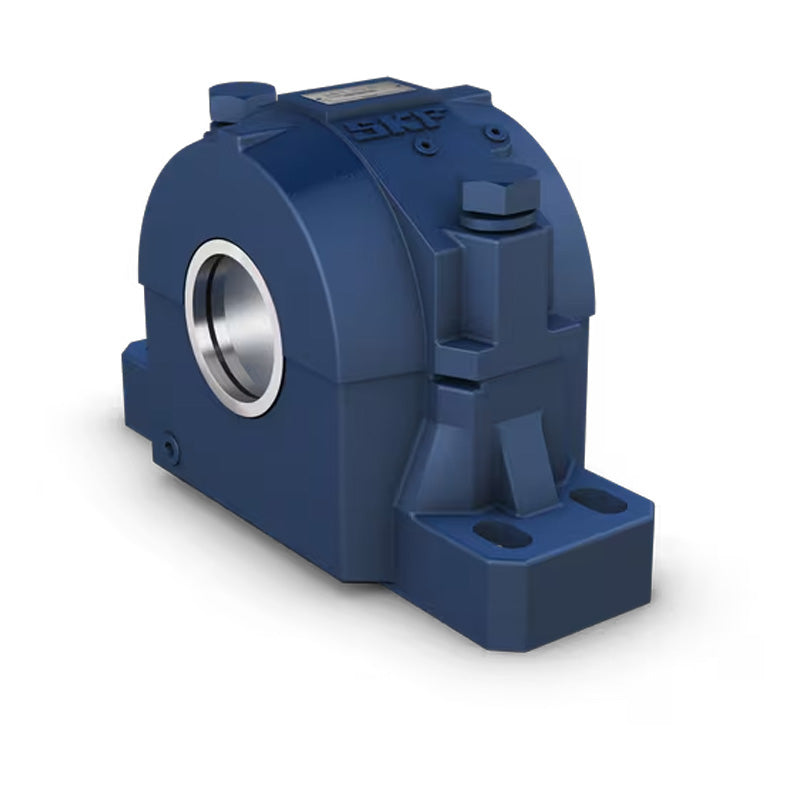

SKF SAFD23240 Ductile Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAFD23240 Ductile Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 222.25mm = 8.75 (8-3/4) inch
Technical
Technical
| Housing | SAFD240 |
|---|---|
| Triple Ring Seal for Shaft Dia da | LOR175 |
| Triple Ring Seal for Shaft Dia db | LOR164 |
| Bearing | 23240CC/W33 |
| Lock Nut | AN40 |
| Lock Washer | W40 |
| Fixing Rings (2 required) | 35072-40 |
| da | 8-3/4 inch |
| db | 7-5/8 inch |
| A | 279mm = 11 inch |
| A1 | 203mm = 8 inch |
| A2 | 286mm = 11-1/4 inch |
| A3 | 362mm = 14-1/4 inch |
| H | 419mm = 16-1/2 inch |
| H1 | 209.55mm = 8-1/4 inch |
| H2 | 86mm = 3-3/8 inch |
| H3 | 63mm = 2-15/32 inch |
| L | 749mm = 29-1/2 inch |
| J max | 635mm = 25 inch |
| J min | 572mm = 22-1/2 inch |
| J1 | 127mm = 5 inch |
| Bolts (required) | (4) 30mm = 1-1/4 inch |
| End plug | EPR22 |
| Weight | 214 kg |
