SKU: SAFD22534/150-SKF

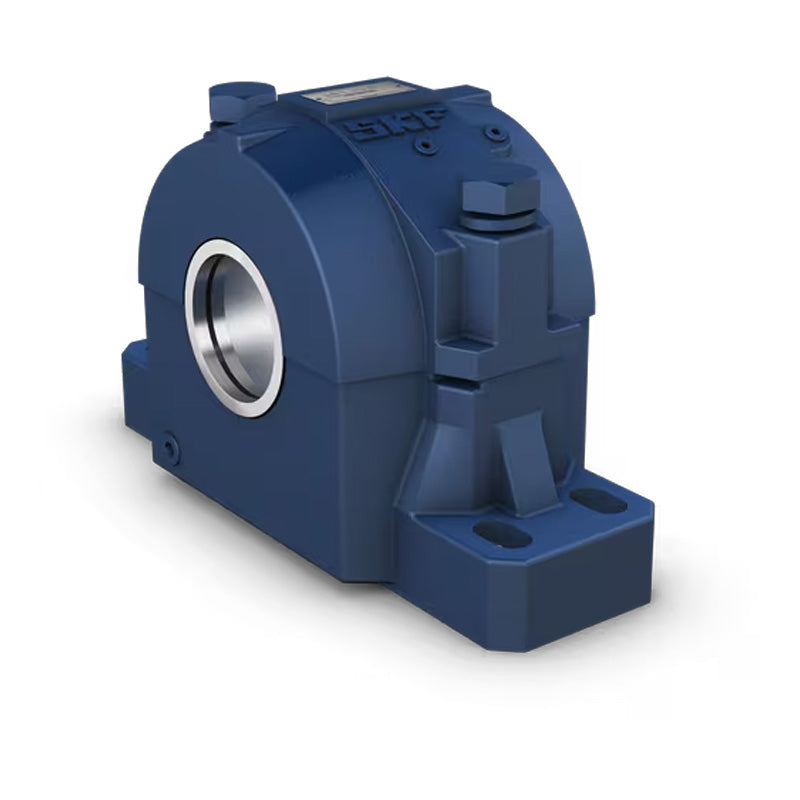

SKF SAFD22534/150 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD22534/150 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
Technical
Technical
| Housing | SAFD534 |
|---|---|
| Triple Ring Seal | LOR577 |
| Bearing | 22234CCK/W33 |
| Adaptor Sleeve | H3134 |
| Fixing Rings (2 required) | 36059-34 |
| da | 150mm |
| A | 235mm = 9-1/4 inch |
| A1 | 171mm = 6-3/4 inch |
| A2 | 244mm = 9-5/8 inch |
| A3 | 318mm = 12-1/2 inch |
| H | 360mm = 14-3/16 inch |
| H1 | 179.39mm = 7-1/16 inch |
| H2 | 70mm = 2-3/4 inch |
| H3 | 55mm = 2-5/32 inch |
| L | 629mm = 24-3/4 inch |
| J max | 549mm = 21-5/8 inch |
| J min | 492mm = 19-3/8 inch |
| J1 | 108mm = 4-1/4 inch |
| Bolts (required) | (4) 24mm = 1 inch |
| End plug | EPR18 |
| Weight | 127 kg |
