SKU: SAFD22522/4-SKF

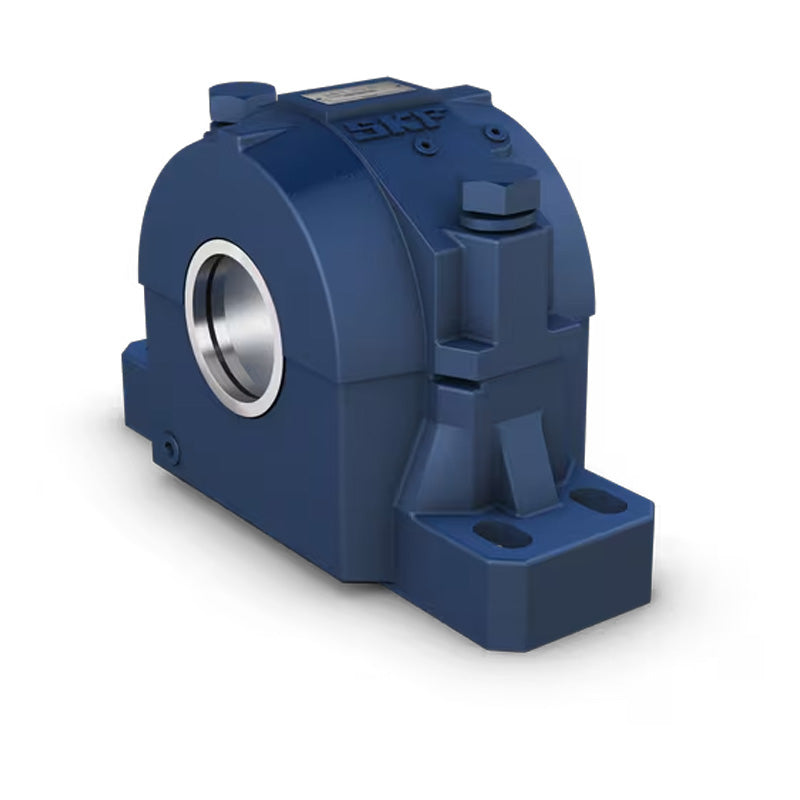

SKF SAFD22522/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD22522/4 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
Technical
Technical
| Housing | SAFD522 |
|---|---|
| Triple Ring Seal | LOR110 |
| Taconite Service Seal | TER522/4 |
| Bearing | 22222EK |
| Adaptor Sleeve | HE322 |
| Fixing Rings (2 required) | FRB13.5/200 |
| da | 4 inch |
| A | 6-7/16 inch = 164mm |
| A1 | 4-3/4 inch = 121mm |
| A2 | 6-1/2 inch = 165mm |
| A3 | 9-1/2 inch = 242mm |
| H | 9-5/8 inch = 244mm |
| H1 | 4-15/16 inch = 125.41mm |
| H2 | 2 inch = 51mm |
| H3 | 1-25/32 inch = 45mm |
| L | 16-1/2 inch = 419mm |
| J max | 14-1/2 inch = 368mm |
| J min | 12-5/8 inch = 321mm |
| J1 | 2-3/4 inch = 70mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| End Plug | EPR13 |
| Weight | 41.9 kg |
