SKU: SAFC2620/3-7/16-SKF

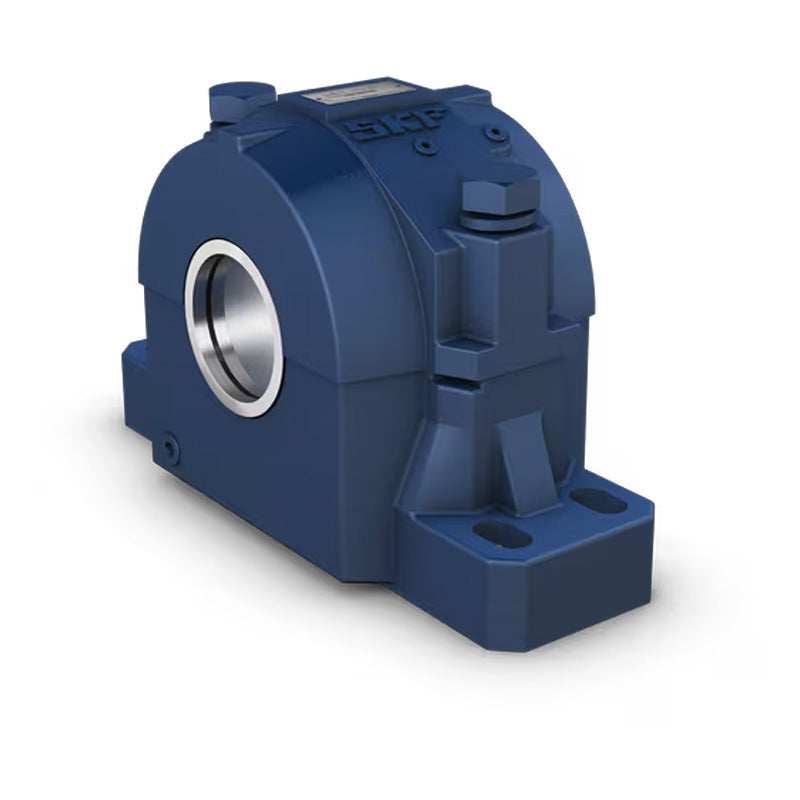

SKF SAFC2620/3-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFC2620/3-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
Technical
Technical
| Housing | SAF620 |
|---|---|
| Triple Ring Seal | LOR102 |
| Taconite Seal | TER102 |
| Bearing | C2320EK |
| Adaptor Sleeve | HA2320 |
| Fixing Rings | 1 x SR24-20 |
| End Cover | EPR12 |
| da | 3-7/16 inch |
| A1 | 4-3/4 inch = 120.7mm |
| A2 | 7-3/8 inch = 187.3mm |
| A3 | 10 inch = 254mm |
| H | 10-3/16 inch = 258.8mm |
| H1 | 5-1/4 inch = 133.35mm |
| H2 | 2-1/8 inch = 54mm |
| Static oil level H3 Roller bearing | 2-1/32 inch = 51.6mm |
| Static oil level H3 Ball bearing | 2-3/16 inch = 55.6mm |
| J max | 14-1/2 inch = 368.3mm |
| J min | 13-1/4 inch = 336.6mm |
| J1 | 2-3/4 inch = 69.9mm |
| L | 16-1/2 inch = 419.1mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 56.7 kg |
