SKU: SAF22638/6-15/16-SKF

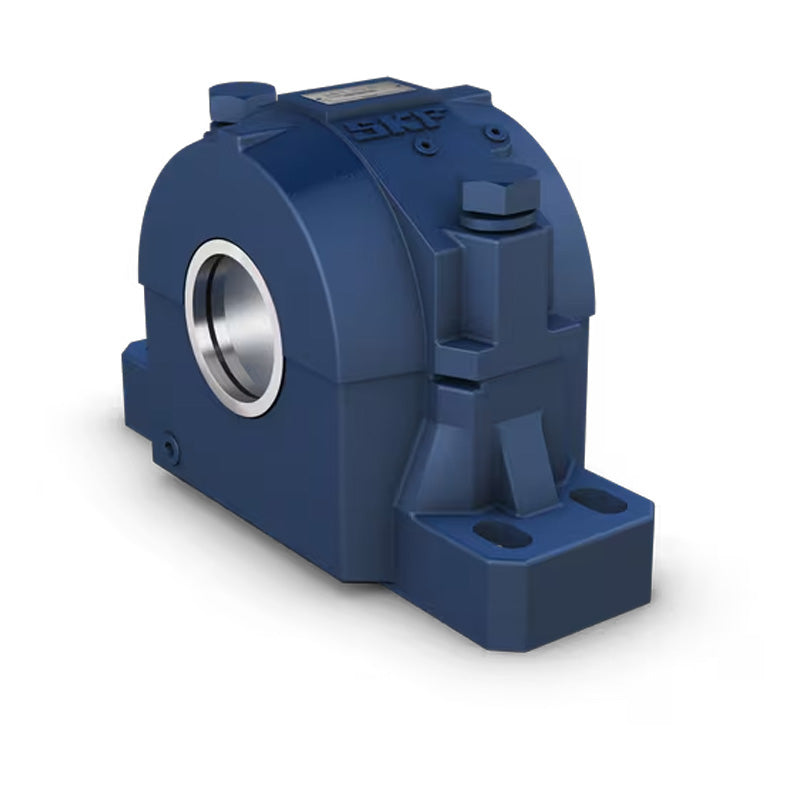

SKF SAF22638/6-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22638/6-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 176.21mm = 6.937 (6-15/16) inch
Technical
Technical
| Housing | SAF638 |
|---|---|
| Triple Ring Seal | LOR155 |
| Taconite Seal | TER155 |
| Bearing | 22338CCK/W33 |
| Adaptor Sleeve | HA2338 |
| Fixing Rings | 1 x SR44-38 |
| End Cover | EPR20 |
| da | 6-15/16 inch |
| A1 | 8-3/4 inch = 222.3mm |
| A2 | 12 inch = 304.8mm |
| A3 | 14-5/8 inch = 371.5mm |
| H | 18-5/8 inch = 473.1mm |
| H1 | 9-1/2 inch = 241.3mm |
| H2 | 3-3/4 inch = 95.3mm |
| Static oil level H3 | 3-3/8 inch = 85.7mm |
| J max | 27-7/8 inch = 708mm |
| J min | 24-3/4 inch = 628.7mm |
| J1 | 5-1/4 inch = 133.4mm |
| L | 32-3/4 inch = 831.9mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1-1/2 inch = 36mm |
| Weight | 317.5 kg |
