SKU: SAF22624/4-3/16-SKF

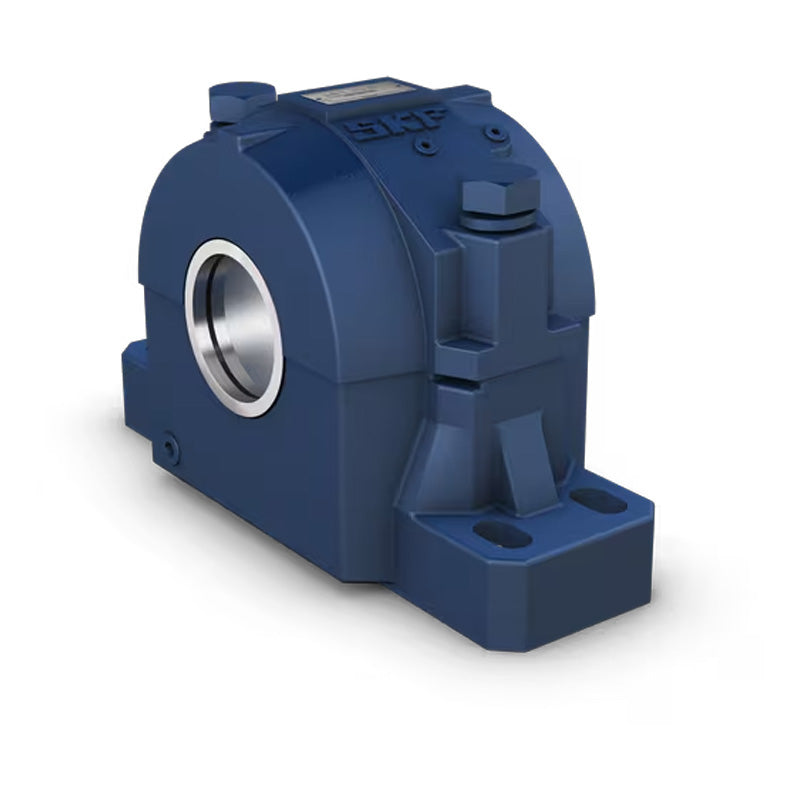

SKF SAF22624/4-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22624/4-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 106.36mm = 4.187 (4-3/16) inch
Technical
Technical
| Housing | SAF624 |
|---|---|
| Triple Ring Seal | LOR113 |
| Taconite Seal | TER113 |
| Bearing | 22324CCK/W33 |
| Adaptor Sleeve | HA2324 |
| Fixing Rings | 1 x SR0-24 |
| End Cover | EPR14 |
| da | 4-3/16 inch |
| A1 | 6-1/4 inch = 158.8mm |
| A2 | 8-3/8 inch = 212.7mm |
| A3 | 11 inch = 279.4mm |
| H | 12-1/2 inch = 317.5mm |
| H1 | 6-5/16 inch = 160.34mm |
| H2 | 2-1/2 inch = 63.5mm |
| Static oil level H3 | 2-3/8 inch = 60.3mm |
| J max | 18-1/4 inch = 463.6mm |
| J min | 17 inch = 431.8mm |
| J1 | 3-3/4 inch = 95.3mm |
| L | 21-1/4 inch = 539.8mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| Weight | 102 kg |
