SKU: SAF22609/1-7/16-SKF

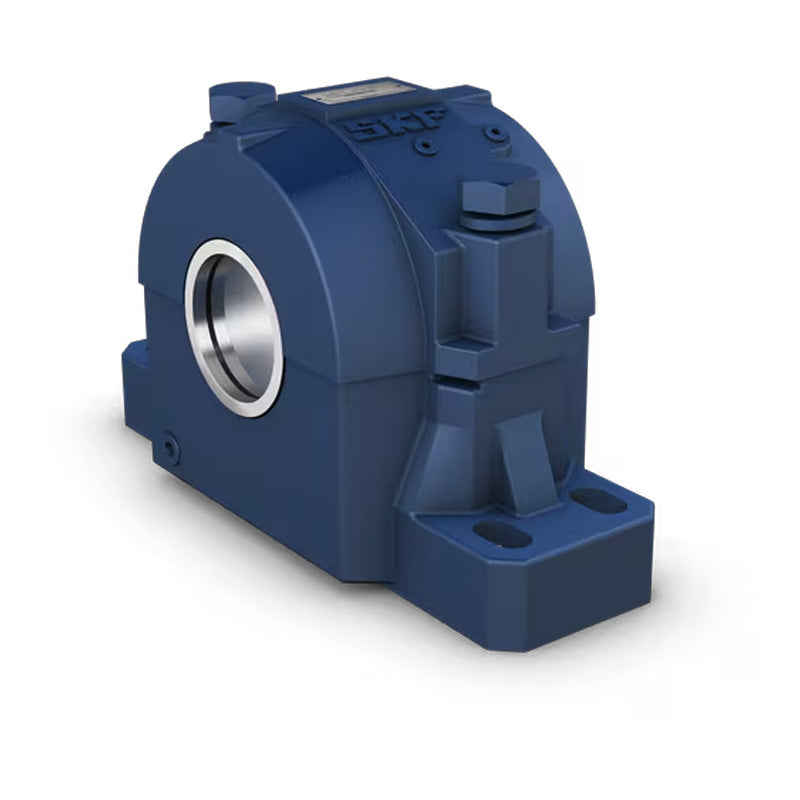

SKF SAF22609/1-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22609/1-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
Technical
Technical
| Housing | SAF609 |
|---|---|
| Triple Ring Seal | LER17 |
| Taconite Seal | TER17 |
| Bearing | 22309EK |
| Adaptor Sleeve | HA2309 |
| Fixing Rings | 1 x SR11-9 |
| End Cover | EPR3 |
| da | 1-7/16 inch |
| A1 | 2-3/4 inch = 69.8mm |
| A2 | 4-1/4 inch = 108mm |
| A3 | 6-3/4 inch = 171.5mm |
| H | 5-5/16 inch = 134.9mm |
| H1 | 2-3/4 inch = 69.85mm |
| H2 | 1 inch = 25.4mm |
| Static oil level H3 Roller bearing | 1-9/32 inch = 32.5mm |
| Static oil level H3 Ball bearing | 1-5/16 inch = 33.3mm |
| J max | 7-7/8 inch = 200mm |
| J min | 7-3/8 inch = 187.3mm |
| L | 9-5/8 inch = 244.5mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| Weight | 9.1 kg |
