SKU: SAF22517/2-15/16-SKF

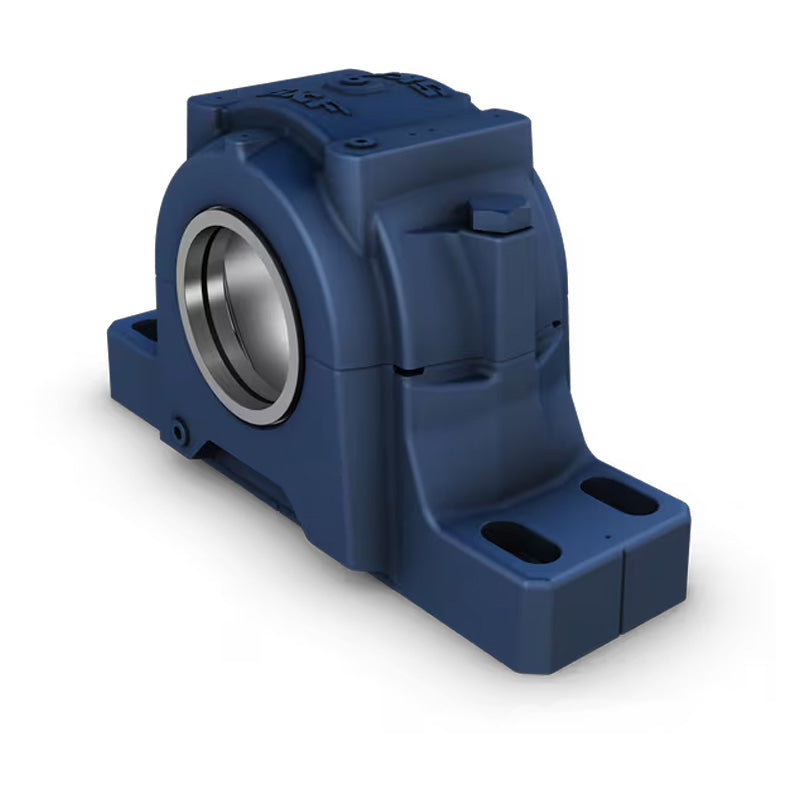

SKF SAF22517/2-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22517/2-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
Technical
Technical
| Housing | SAF517 |
|---|---|
| Triple Ring Seal | LOR53 |
| Taconite Seal | TER53 |
| Bearing | 22217EK |
| Adaptor Sleeve | HA317 |
| Fixing Rings | 1 x SR17-14 |
| End Cover | EPR9 |
| da | 2-15/16 inch |
| A1 | 3-1/2 inch = 88.9mm |
| A2 | 5 inch = 127mm |
| A3 | 7-13/16 inch = 198.4mm |
| H | 7-1/8 inch = 181mm |
| H1 | 3-3/4 inch = 95.25mm |
| H2 | 1-1/4 inch = 31.8mm |
| Static oil level H3 Roller bearing | 1-3/8 inch = 34.9mm |
| Static oil level H3 Ball bearing | 1-15/32 inch = 37.3mm |
| J max | 11 inch = 279.4mm |
| J min | 9-7/8 inch = 250.8mm |
| L | 13 inch = 330.2mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 3/4 inch = 20mm |
| Weight | 15.9 kg |
