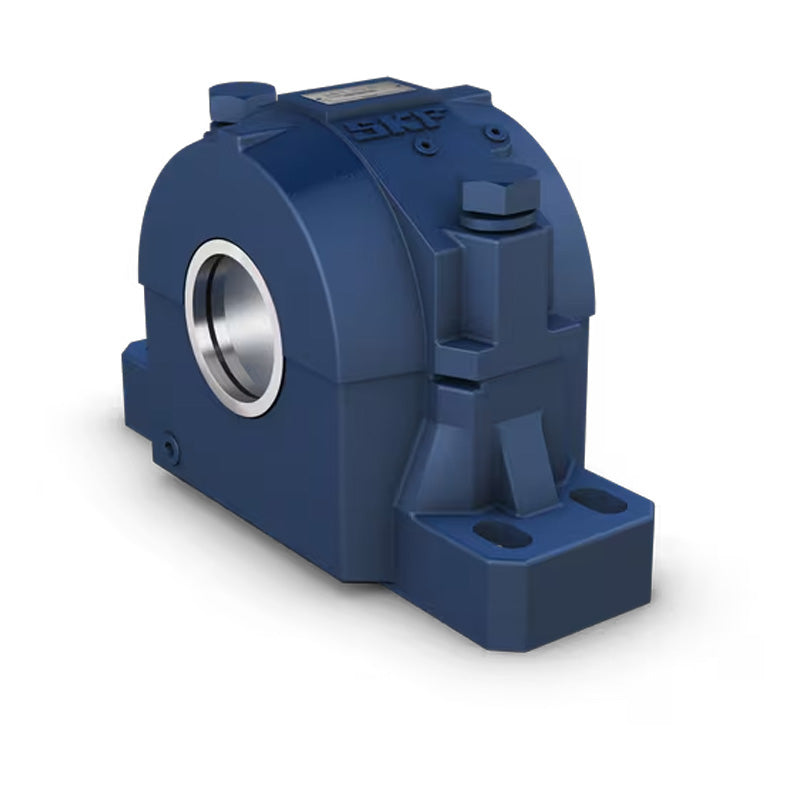

SKF SAF22338 Cast Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAF22338 Cast Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 212.73mm = 8.375 (8-3/8) inch
Technical
Technical
| Housing | SAF338 |
|---|---|
| Triple seal ring for shaft diameter da | LOR171 |
| Triple seal ring for shaft dia db | LOR160 |
| Bearing | 22338 CC/W33 |
| Lock nut | AN38 |
| Lock washer | W38 |
| Fixing rings | 1 x SR44-38 |
| End cover | EPR21 |
| da | 8-3/8 inch |
| db | 7-1/4 inch |
| A1 | 8-3/4 inch = 222.25mm |
| A2 | 12 inch = 304.8mm |
| A3 | 16-1/8 inch = 409.58mm |
| H | 18-5/8 inch = 473.08mm |
| H1 | 9-1/2 inch = 241.3mm |
| H2 | 3-3/4 inch = 95.25mm |
| Static oil level H3 | 3-3/8 inch = 85.73mm |
| J max | 27-7/8 inch = 708.03mm |
| J min | 24-3/4 inch = 628.65mm |
| J1 | 5-1/4 inch = 133.35mm |
| L | 32-3/4 inch = 831.85mm |
| Bolts (required) G | (4) 1-1/2 inch = 36mm |
| Weight | 297 kg |
