SKU: SAF1509/1-1/2-SKF

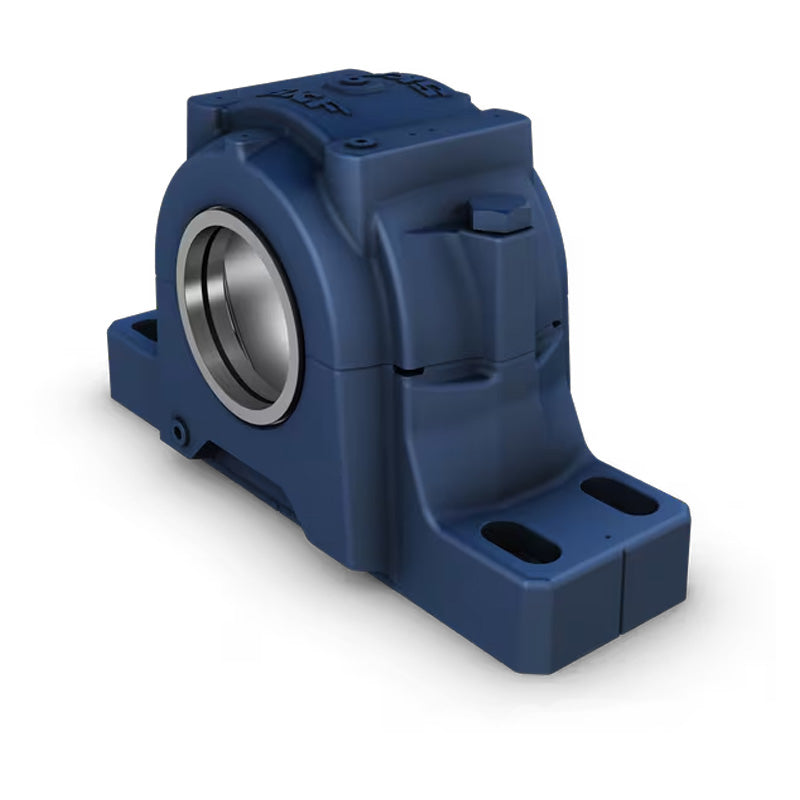

SKF SAF1509/1-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF1509/1-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Housing | SAF509 |
|---|---|
| Triple Ring Seal | LER18 |
| Taconite Seal | TER18 |
| Bearing | 1209EK |
| Adaptor Sleeve | HE209 |
| Fixing Rings | 1 x SR9-0 |
| End Cover | EPR3 |
| da | 1-1/2 inch |
| A1 | 2-3/8 inch = 60.3mm |
| A2 | 3-5/8 inch = 92.1mm |
| A3 | 6-1/16 inch = 154mm |
| H | 4-7/16 inch = 112.7mm |
| H1 | 2-1/4 inch = 57.15mm |
| H2 | 13/16 inch = 20.6mm |
| Static oil level H3 Roller bearing | 31/32 inch = 24.6mm |
| Static oil level H3 Ball bearing | 1 inch = 25.4mm |
| J max | 7 inch = 177.8mm |
| J min | 6-1/4 inch = 158.8mm |
| L | 8-1/4 inch = 209.6mm |
| X | 7/64 inch = 2.8mm |
| Bolts (required) G | (2) 1/2 inch = 12mm |
| Weight | 5 kg |
