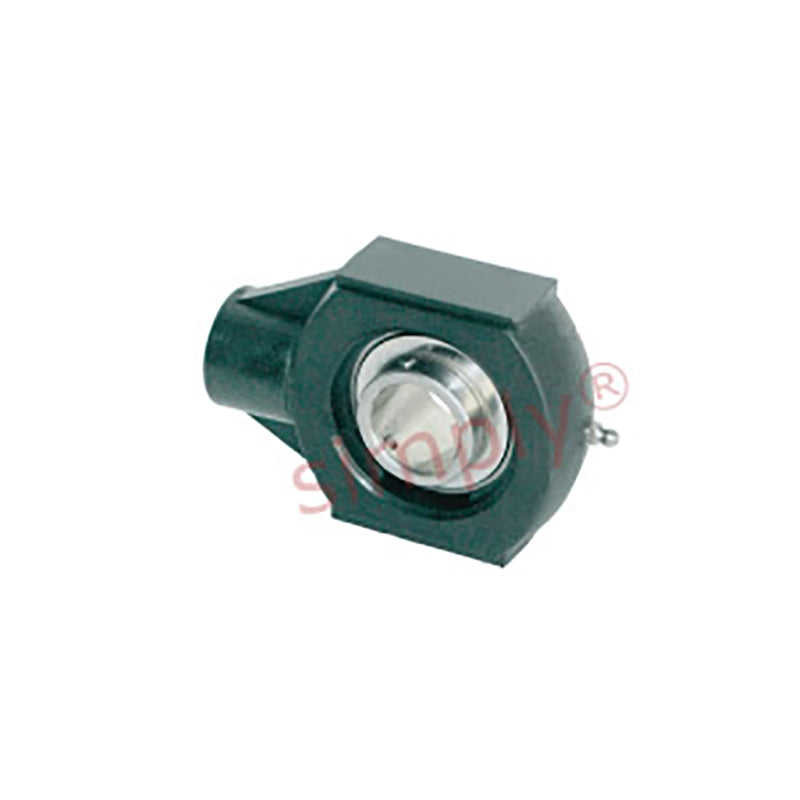

INA RHEY35TVVA Plastic Take Up Unit with Grub Screw Insert Corrosion-Resistant Design 35mm Bore
INA RHEY35TVVA Plastic Take Up Unit with Grub Screw Insert Corrosion-Resistant Design 35mm Bore
Out of stock
Description
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. These plastic take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. As the housing is made from plasic and the bearing insert is made from corrosion-resistant steel, this unit is suitable for use where corrosion resistance is required. Benefits: Re-lubricatable, grub screw fixing, corrosion-resistant, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- RHEY
Technical
Technical

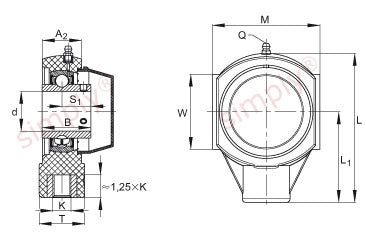

| d | 35mm |
|---|---|
| L | 125mm |
| M | 90mm |
| A2 | 34.5mm |
| B | 42.9mm |
| K | M16? |
| L1 | 76mm |
| Q | 1/4 - 28 UNF? |
| S1 | 25.4mm |
| T | 40mm |
| W | 63mm |
| Mass | 0.78 kg |
| Basic dynamic load rating Cr | 24600 N |
| Basic static load rating Cor | 14600 N |
| Load carrying capacity of housing Cor G | 10700 N |
| Designation of housing | GEH.HE07-TV? |
| Designation of bearing | GYE35-KRR-B-FA107-VA? |
| Bearing end cap, closed design | KASK07-S-G? |
| Bearing end caps, open design, with integral rotary shaft seal (available by agreement) | KASK07-S-R-NBR? |
