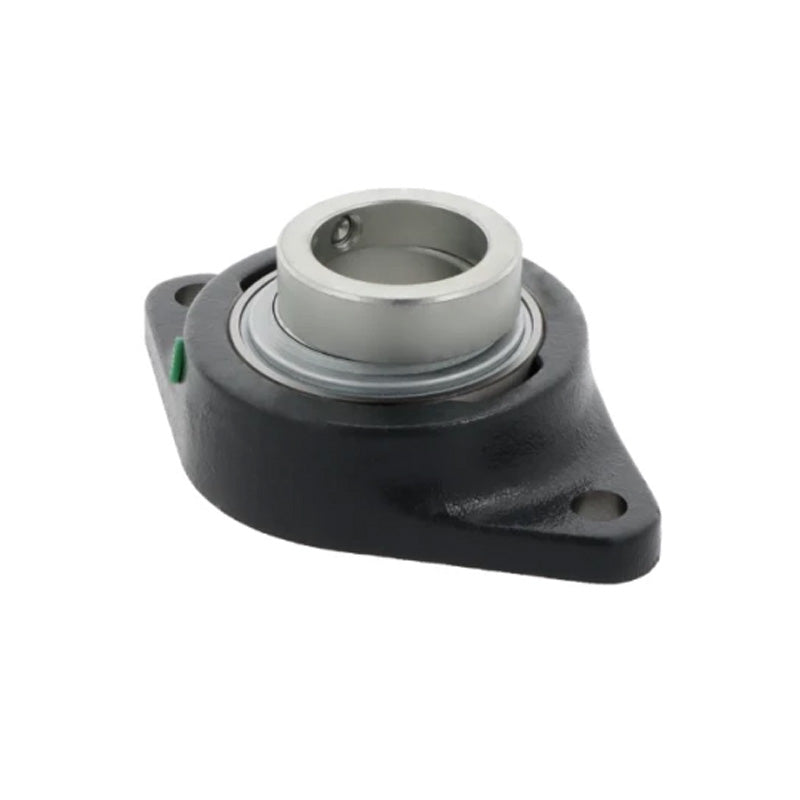

INA RCJTY1-11/16 Two Bolt Cast Iron Oval Housing with Grub Screw Insert 1-11/16 inch Bore
INA RCJTY1-11/16 Two Bolt Cast Iron Oval Housing with Grub Screw Insert 1-11/16 inch Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- RCJTY
- Bolt Hole Centres:
- 148.51mm = 5.847 inch
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| d | 42.9mm |
| H | 7.106 inch |
| H | 180.5mm |
| U | 2.134 inch |
| U | 54.2mm |
| A | 1.516 inch |
| A1 | 0.591 inch |
| A2 | 0.945 inch |
| B | 1.937 inch |
| J | 5.847 inch |
| L | 4.409 inch |
| N | 0.551 inch |
| Q | 1/8 NPT |
| V | 4.409 inch |
| Mass | 4.34 lbs |
| Basic dynamic load rating Cr | 7400 lbf |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 4600 lbf |
| Basic static load rating Cor | 20400 N |
| Designation of housing | GG.CJT09 |
| Designation of bearing | GY1111-KRR-B-AS2/V |
