SKU: RAX545-MB
Major Brand RAX 545 Needle Combined Bearing with Needle Thrust Cage 45x58x28mm Allow 2-3 Days
Major Brand RAX 545 Needle Combined Bearing with Needle Thrust Cage 45x58x28mm Allow 2-3 Days
Out of stock
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 28mm
- Width:
- 58mm
Technical
Technical

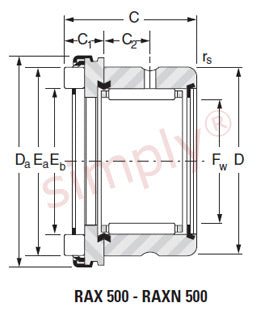

| Fw | 45mm |
|---|---|
| C | 28mm |
| D | 58mm |
| Da | 65.4mm |
| Eb | 47.8mm |
| Ea | 59.8mm |
| C1 | 10mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 49 kN |
| Axial static load | 143 kN |
| Speed rating | 4500 rpm |
| Inner ring | JR 40x45x20 kN |
| Weight | 0.206 kg |
