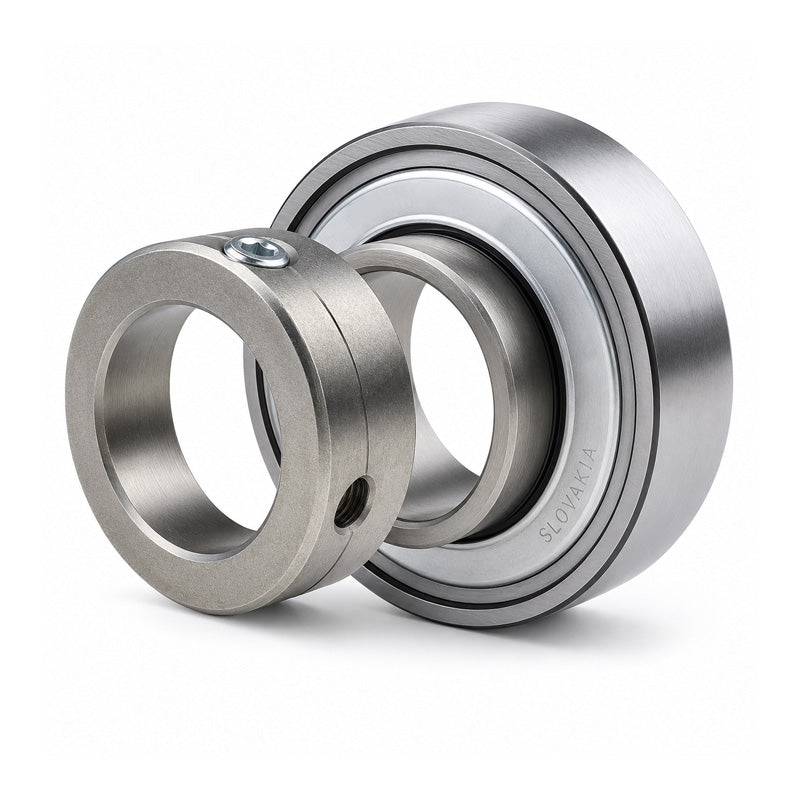

INA RA104206NPPB Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
INA RA104206NPPB Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
Out of stock
Description
Description
|
INA RA..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 31.75mm |
|---|---|
| d | 1-1/4 inch |
| Dsp | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 5/32 inch |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.31 kg |
