SKU: RA101-NPP-INA

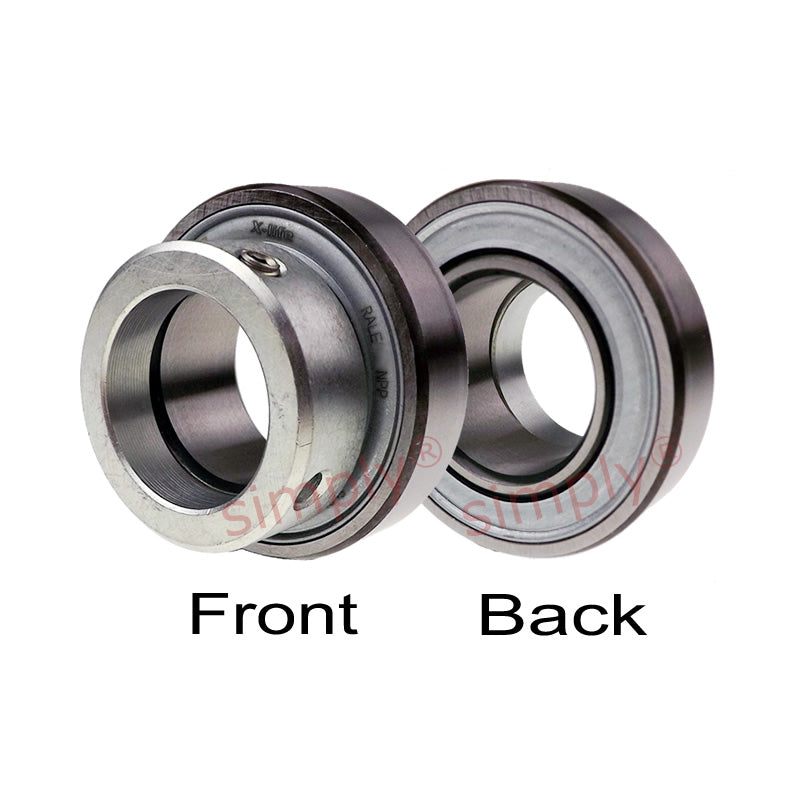

INA RA101NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 26.99x62x35.8mm
INA RA101NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 26.99x62x35.8mm
Out of stock
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 26.99mm |
|---|---|
| d | 1-1/16 inch |
| D | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 5/32 inch |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.31 kg |
