SKU: PKSAL6+SL6

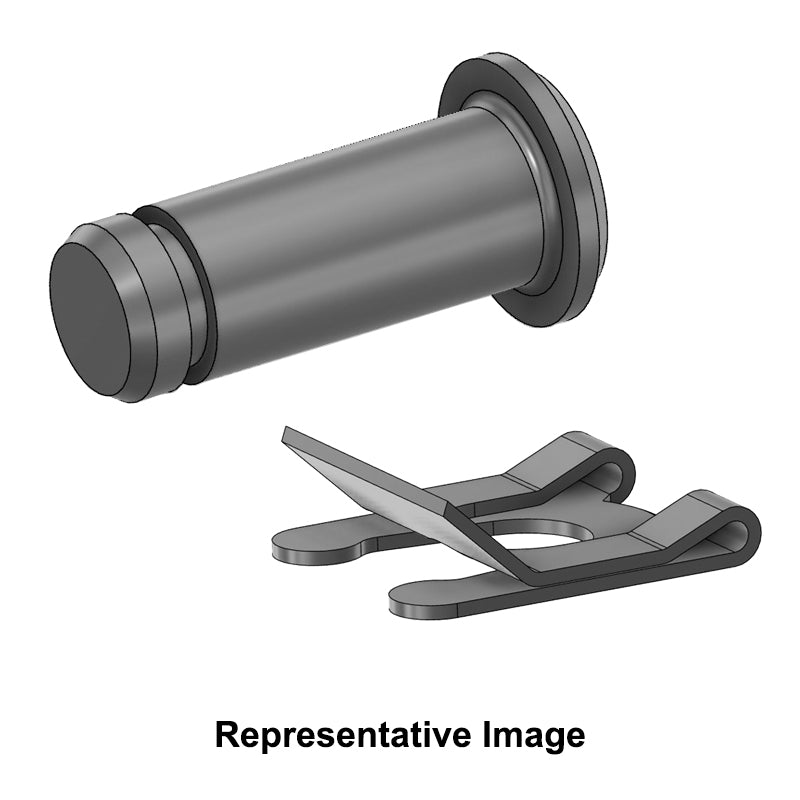

Chiavette PKSAL6/SL6 Aluminium Clevis Pin and Retainer 9x15.5mm - Allow 7-10 Days
Chiavette PKSAL6/SL6 Aluminium Clevis Pin and Retainer 9x15.5mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Aluminium Clevis Pin with Retainer: This kit includes a grooved aluminium clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 6mm
- Length:
- 15.5mm
- Material:
- Aluminium
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKSAL6+Pin>PKSAL6</a> |
| Material | Aluminium |
| d1 | 6mm |
| D | 9mm |
| k | 1.5mm |
| z | 0.5mm |
| z1 | 0.8mm |
| r | 0.5mm |
| d2 | 5mm |
| m | 0.74mm (+0.1mm) |
| l1 | 12.5mm (+0.3mm) |
| l | 15.5mm (+0.3mm) |
| Weight | 0.002kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SL6+Retainer>SL6</a> |
| Material | Spring Steel |
| d1 | 6mm |
| a | 11mm |
| h | 14.1mm |
| h1 | 6mm |
| b | 3.8mm |
| s | 0.4mm |
| d2 | 5mm |
| m | 0.74mm (+0.1mm) |
| n | 3mm (+0.30mm) |
| z1 | 0.8mm |
| Max axial Load | 0.75 kN |
| Weight | 0.063kg |
