SKU: PKSAL10+SL10
Chiavette PKSAL10/SL10 Aluminium Clevis Pin and Retainer 14x25mm - Allow 7-10 Days
Chiavette PKSAL10/SL10 Aluminium Clevis Pin and Retainer 14x25mm - Allow 7-10 Days
Out of stock
Description
Description

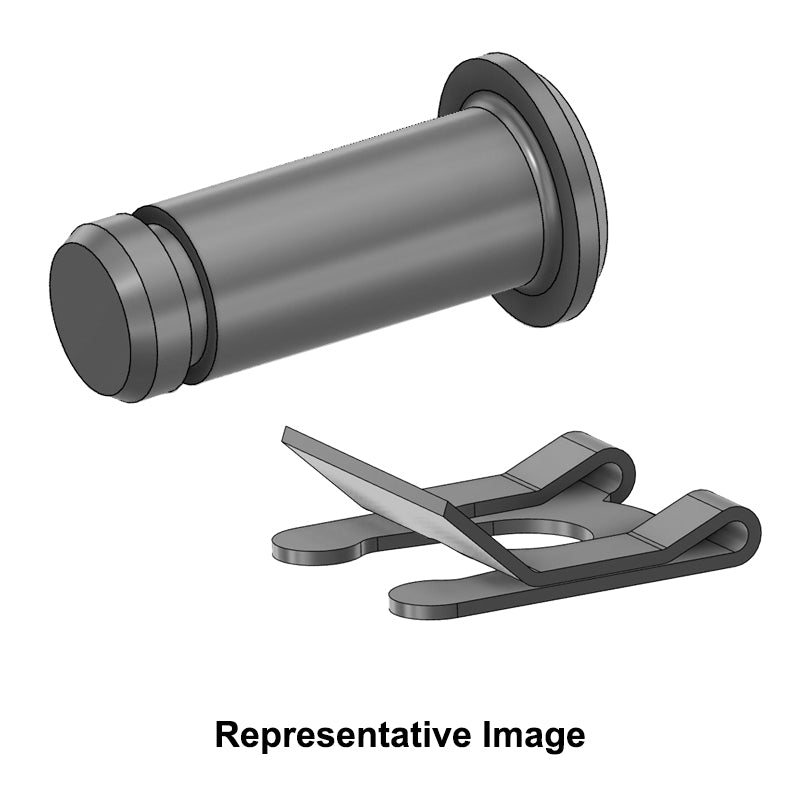

Chiavette Aluminium Clevis Pin with Retainer: This kit includes a grooved aluminium clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 10mm
- Length:
- 25mm
- Material:
- Aluminium
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKSAL10+Pin>PKSAL10</a> |
| Material | Aluminium |
| d1 | 10mm |
| D | 14mm |
| k | 2mm |
| z | 1mm |
| z1 | 1mm |
| r | 0.5mm |
| d2 | 8mm |
| m | 1.05mm (+0.1mm) |
| l1 | 20.5mm (+0.3mm) |
| l | 25mm (+0.3mm) |
| Weight | 0.006kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SL10+Retainer>SL10</a> |
| Material | Spring Steel |
| d1 | 10mm |
| a | 18mm |
| h | 22.1mm |
| h1 | 10mm |
| b | 5mm |
| s | 0.5mm |
| d2 | 8mm |
| m | 1.05mm (+0.1mm) |
| n | 4.5mm (+0.30mm) |
| z1 | 1mm |
| Max axial Load | 3.2 kN |
| Weight | 0.211kg |
