SKU: PKS10+KL10

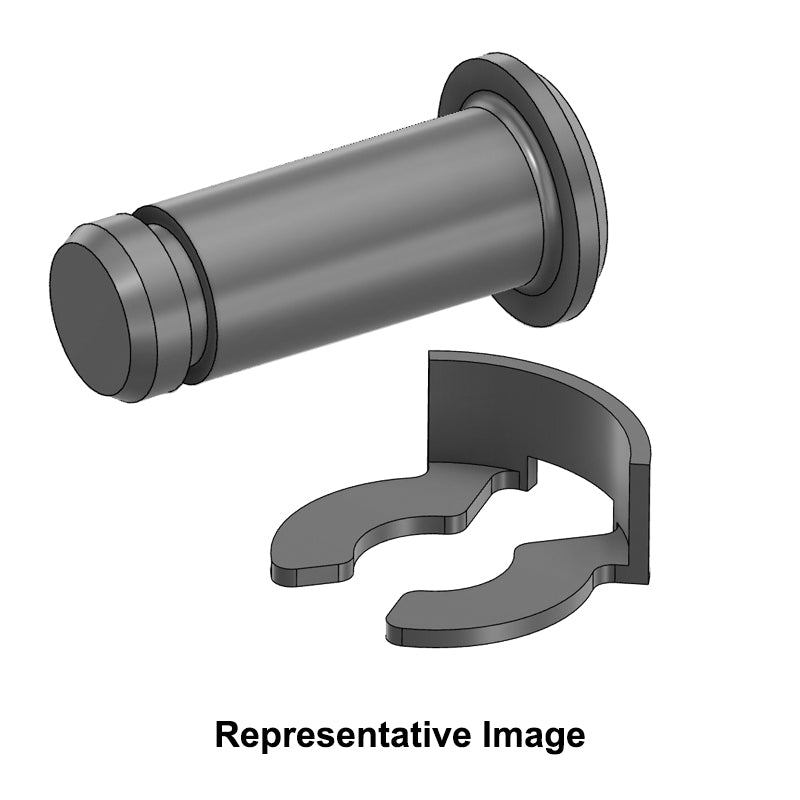

Chiavette PKS10/KL10 Steel Clevis Pin and Retainer 14x25mm - Allow 7-10 Days
Chiavette PKS10/KL10 Steel Clevis Pin and Retainer 14x25mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Steel Clevis Pin with Retainer: This kit includes a grooved steel clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 10mm
- Length:
- 25mm
- Material:
- Steel

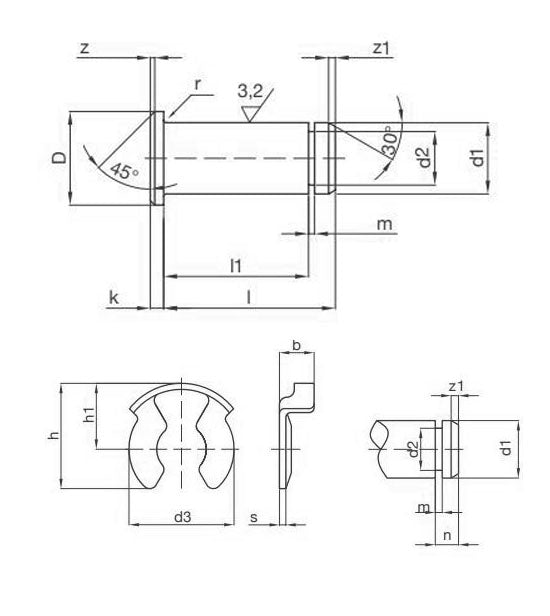

Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS10+Pin>PKS10</a> |
| Material | Steel |
| d1 | 10mm |
| D | 14mm |
| k | 2mm |
| z | 1mm |
| z1 | 1mm |
| r | 0.5mm |
| d2 | 8mm |
| m | 1.05mm (+0.1mm) |
| l1 | 20.5mm (+0.3mm) |
| l | 25mm (+0.3mm) |
| Weight | 0.017kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=KL10+Retainer>KL10</a> |
| Material | Spring Steel |
| d1 | 10mm |
| a | 15.6mm |
| h | 16.3mm |
| h1 | 9.5mm |
| b | 5.9mm |
| s | 0.6mm |
| d2 | 8mm |
| m | 1.05mm (+0.1mm) |
| n | 4.5mm (+0.30mm) |
| z1 | 1mm |
| Max axial Load | 9.5 kN |
| Weight | 0.000899kg |
