SKU: PI6+D1400-006

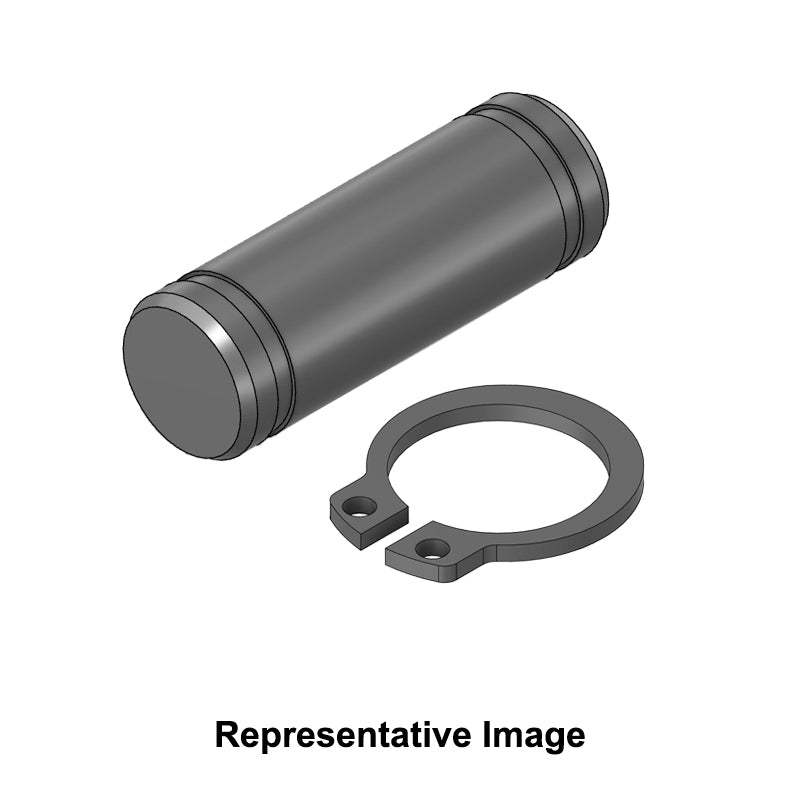

Chiavette PI6 Steel Clevis Pin and Circlip 6x17mm - Allow 7-10 Days
Chiavette PI6 Steel Clevis Pin and Circlip 6x17mm - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Clevis Pin with Circlip: This kit includes a clevis pin and a matching circlip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included circlip that fits within the groove of the pin on one end. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 6mm
- Length:
- 12.5mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PI6+Pin>PI6</a> |
| d1 | 6mm |
| l | 17mm (+0.5mm) |
| d2 | 5.7mm |
| l1 | 12.5mm (+0.2mm) |
| z | 0.5mm |
| m | 0.8mm |
| Weight | 0.005kg |
| --- | Circlip |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=D1400-006+Circlip>D1400-006</a> |
| Shaft Size | 6mm |
| Circlip Thickness s | 0.7mm |
| Thickness Tol. | -0.05mm |
| Unstressed diameter d3 | 5.6mm |
| Unstressed diameter tol | +0.04/-0.15mm |
| Lug a | 2.7mm |
| Beam b | 1.3mm |
| d5 | 1.2mm |
| Groove Diameter | 5.7mm |
| Groove Tolerance | -0.04mm |
| Minimum groove width | 0.8mm |
| Groove depth | 0.15mm |
| Weight | 0.000084kg |
