SKU: PD4+PDR4+PDC4

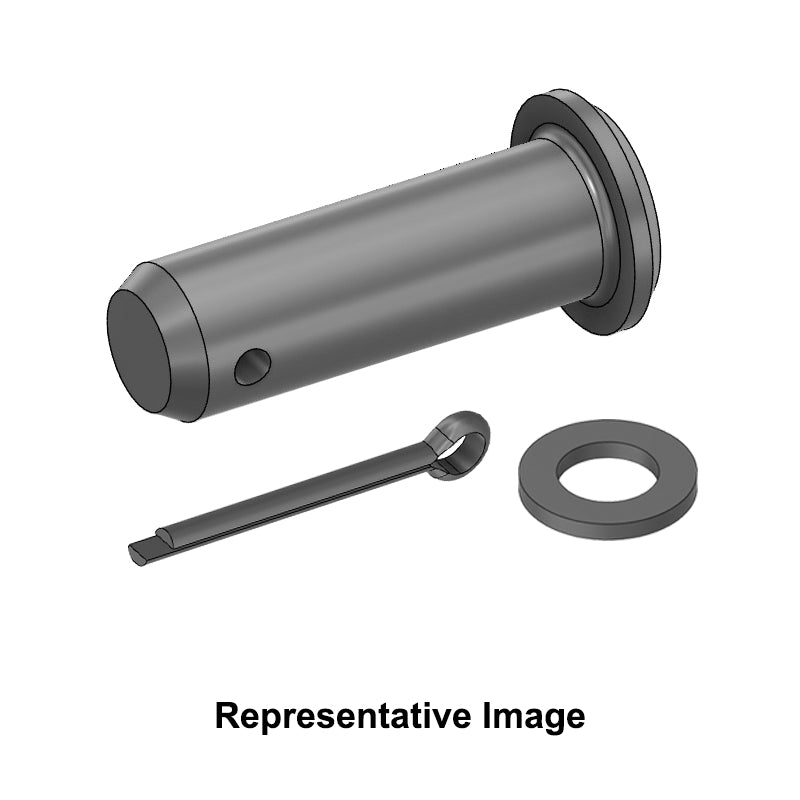

Chiavette PD4 Steel Clevis Pin Kit 4x12mm - Allow 7-10 Days
Chiavette PD4 Steel Clevis Pin Kit 4x12mm - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 4mm
- Length:
- 6mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD4+Pin>PD4</a> |
| Material | Steel |
| d | 4mm |
| D | 6mm |
| k | 1mm |
| z | 0.5mm |
| z1 | 0.8mm |
| r | 0.3mm |
| d2 | 1mm |
| l1 | 10mm (+0.5mm) |
| l | 12mm (+0.5mm) |
| Weight each | 0.001kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR4+Washer>PDR4</a> |
| Material | Steel |
| d1 | 4.3mm |
| d2 | 7.5mm |
| s | 0.8mm |
| Weight | 0.019kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC4+Retainer>PDC4</a> |
| Material | Steel |
| l | 10mm |
| u | 1mm |
| e | 2.5mm |
| b | 1.5mm |
| a | 0.9mm |
| Weight | 0.019 |
