SKU: PC14M-192S-37-TB
Martin Synchrochain / Polychain PC14M-192S-37 855.61mm Pitch Diameter 192 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Martin Synchrochain / Polychain PC14M-192S-37 855.61mm Pitch Diameter 192 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Equivalent to: 14M-192S-37
Out of stock
Share this product
Description
Description
Martin SYNCHROCHAIN® / POLYCHAIN® Tapered Bore High Torque Drive Timing Belt Pulley: High quality metric pitch timing pulleys are used along with timing belts. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
- Brand / Quality:
- Martin - High Quality
- Outside Diameter:
- 852.82mm
- Pitch Diameter:
- 855.61mm
- Number of Teeth:
- 192
Technical
Technical

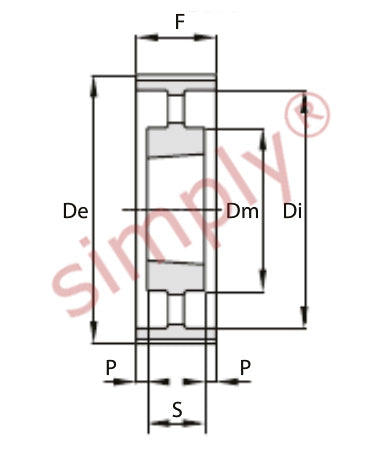

| No. teeth | 192 |
|---|---|
| Bush no. | <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=4030+tapered+locking">4030 Click Here</a> |
| Max. Bore | 115mm |
| Pitch Diameter Dp | 855.61mm |
| External Diameter of Teeth De | 852.82mm |
| Di | 812mm |
| Hub Diameter Dm | 215mm |
| Width over Flanges F | 51mm |
| P | 12.5mm |
| S | 76mm |
| Pitch | 14mm |
