SKU: PB_28-H-100F-DUN

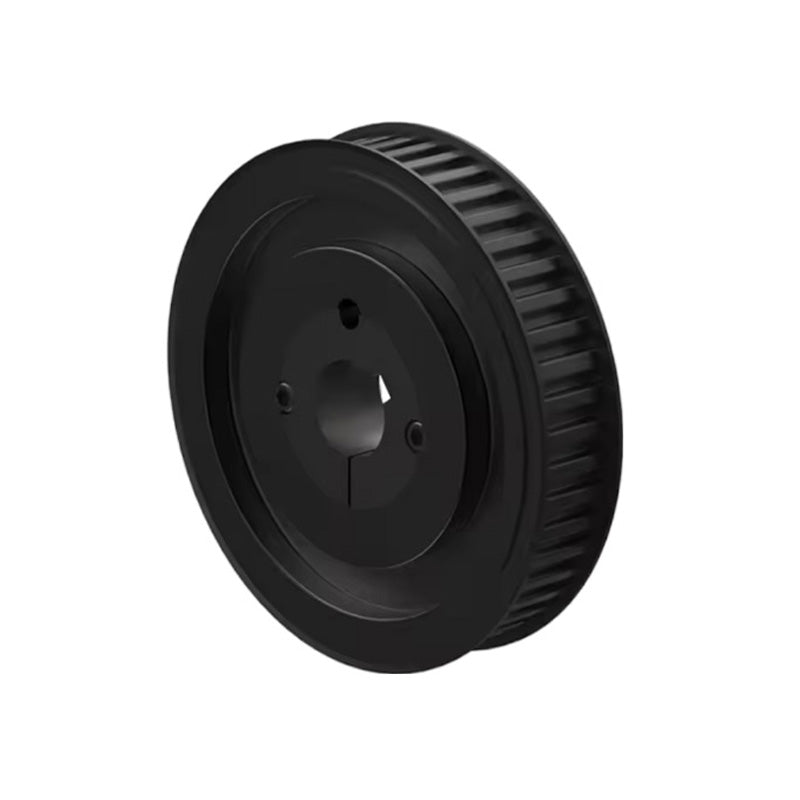

Dunlop 28-H-100F Belt Number H 28 Teeth Imperial Cast Iron Pilot Bore Timing Pulley With Flanges (Bush not Incl.)
Dunlop 28-H-100F Belt Number H 28 Teeth Imperial Cast Iron Pilot Bore Timing Pulley With Flanges (Bush not Incl.)
Out of stock
Share this product
Description
Description
- Brand / Quality:
- Dunlop - Good Quality
- Bore:
- 48mm
- Outside Diameter:
- 111.92mm
- Width:
- 33.3mm
- Material:
- Cast Iron
- Belt Number:
- H100
- Number of Teeth:
- 28
- Pitch Circle Diameter:
- 113.19mm
Technical
Technical
| Number of Teeth | 28 |
|---|---|
| Belt Number | H |
| Belt Width | 25.4mm |
| Pitch Circle Diameter R | 113.19mm |
| Outside Diameter S | 111.92mm |
| Flange Diameter Øe | 118mm |
| Hub Diameter H | 94mm |
| Pulley Width W | 33.3mm |
| Bore Length Y | 48mm |
| Recess Z | 14.7mm |
| Weight | 2.61kg |
