SKU: P85R-40RM-SKF

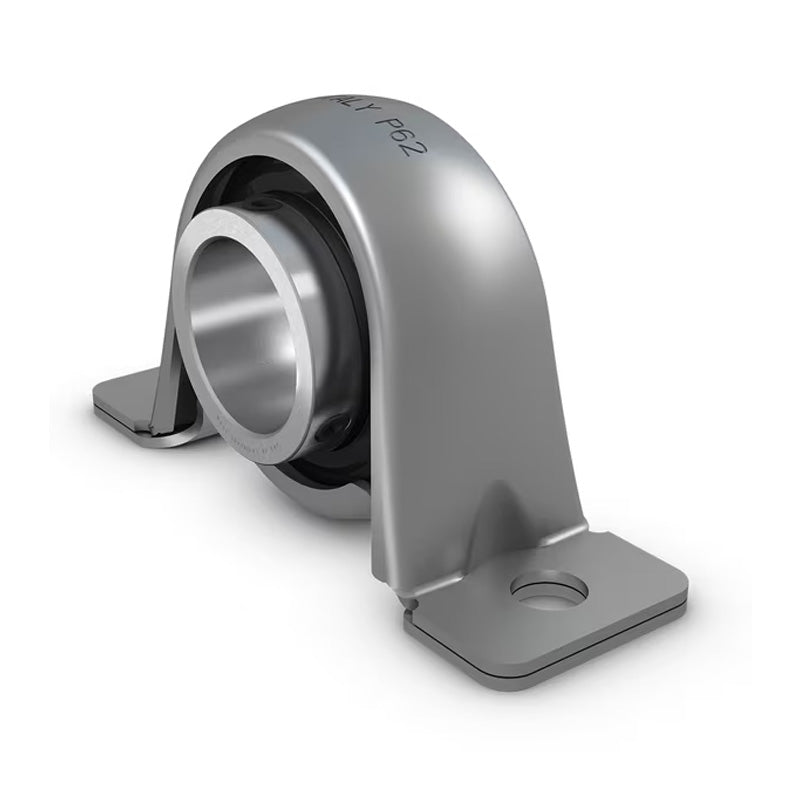

SKF P85R-40RM Pressed Steel Plummer Block with Grub Screw Insert 40mm Bore
SKF P85R-40RM Pressed Steel Plummer Block with Grub Screw Insert 40mm Bore
Out of stock
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- P
- Bolt Hole Centres:
- 128mm
Technical
Technical
| d | 40mm |
|---|---|
| A | 45mm |
| A1 | 31mm |
| B | 36mm |
| H | 92mm |
| H1 | 46.4mm |
| H2 | 6mm |
| J | 128mm |
| L | 156mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.3mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Permissible housing load radial | 4.2 kN |
| Weight | 0.93 kg |
| Housing | YAT208 |
| Insert | P85 |
