SKU: NYR-52-A-IKO

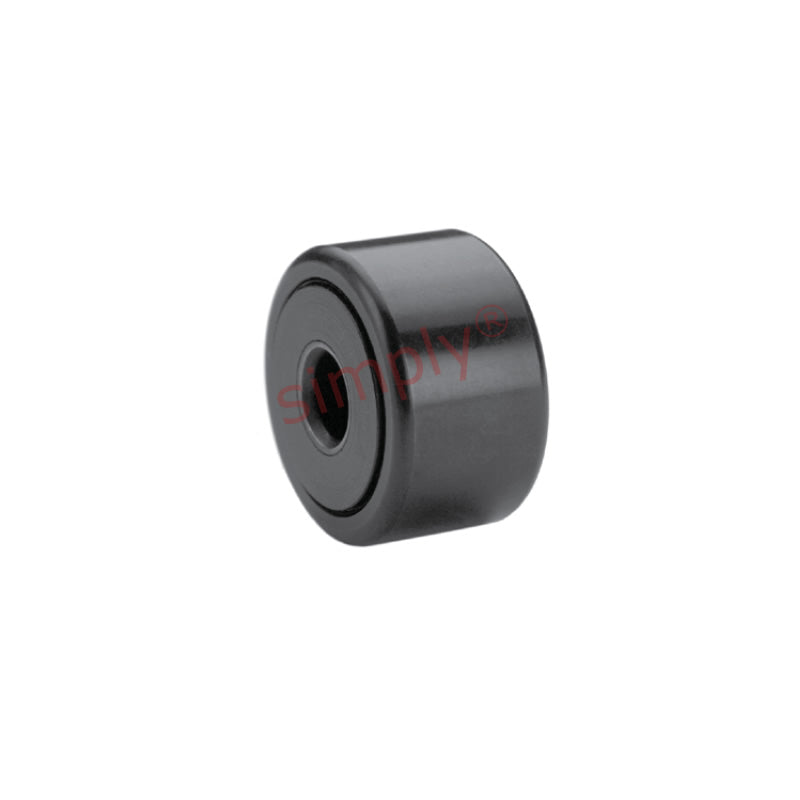

IKO NYR52A Cylindrical Cam Yoke Roller 0.4375x1.625x0.9375 inch Allow 7-10 Days
IKO NYR52A Cylindrical Cam Yoke Roller 0.4375x1.625x0.9375 inch Allow 7-10 Days
Out of stock
Description
Description
|
Cam Yoke Roller: These bearings are particularly well suited to applications with light to moderate loads operating at medium to higher speeds. These bearings feature continuous self-lubrication benefiting applications where lubricating the bearing is inconvenient, difficult or even impossible, or where dirt, dust or other contaminants can seep in causing needle, roller or ball bearings to seize up. Benefits: Continuous self-lubrication, clean lubrication, trouble-free in high humidity applications. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 23.81mm = 0.937 (15/16) inch
Technical
Technical
| A | 1.625 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.875 inch |
| D | 0.9375 inch |
| E | 1-1/8 inch |
| Recommended shaft diameter | 0.4372 inch |
| Load factor | 0.51 |
