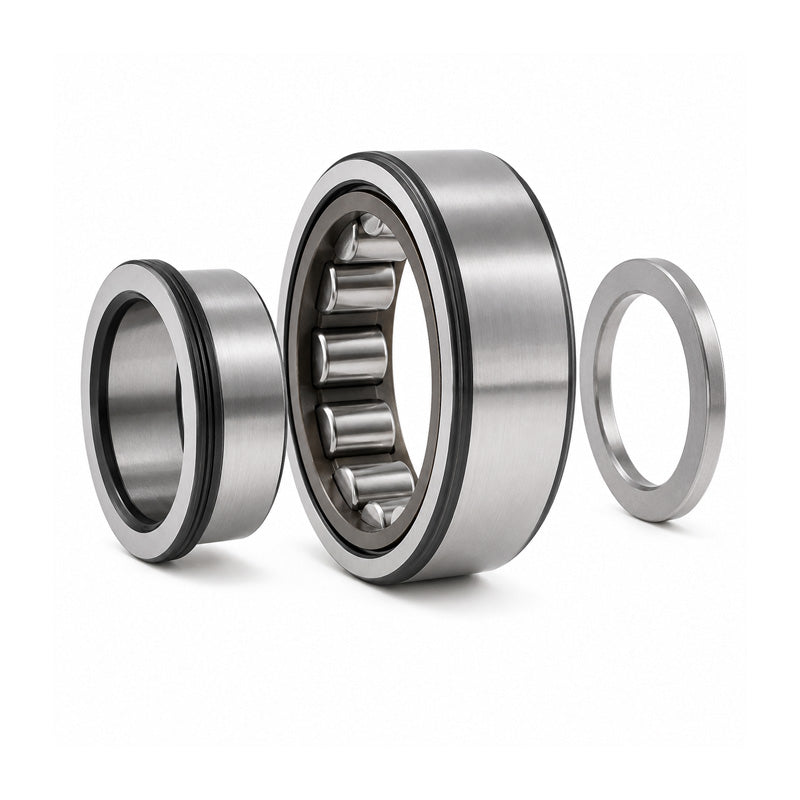

SKF NUP234ECM Single Row Cylindrical Roller Bearing with Brass Cage 170x310x52mm
SKF NUP234ECM Single Row Cylindrical Roller Bearing with Brass Cage 170x310x52mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 310mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 310mm |
| B | 52mm |
| Dynamic load C | 695 kN |
| Static load Co | 815 kN |
| Fatigue load limit Pu | 85 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 2400 rpm |
| Weight | 19 kg |
| Alt cage | MA |
| d1 | 220mm |
| D1 | 268mm |
| F,E | 207mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| da min | 187mm |
| db | 224mm |
| Da max | 293mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
