SKU: NUP2318-EU

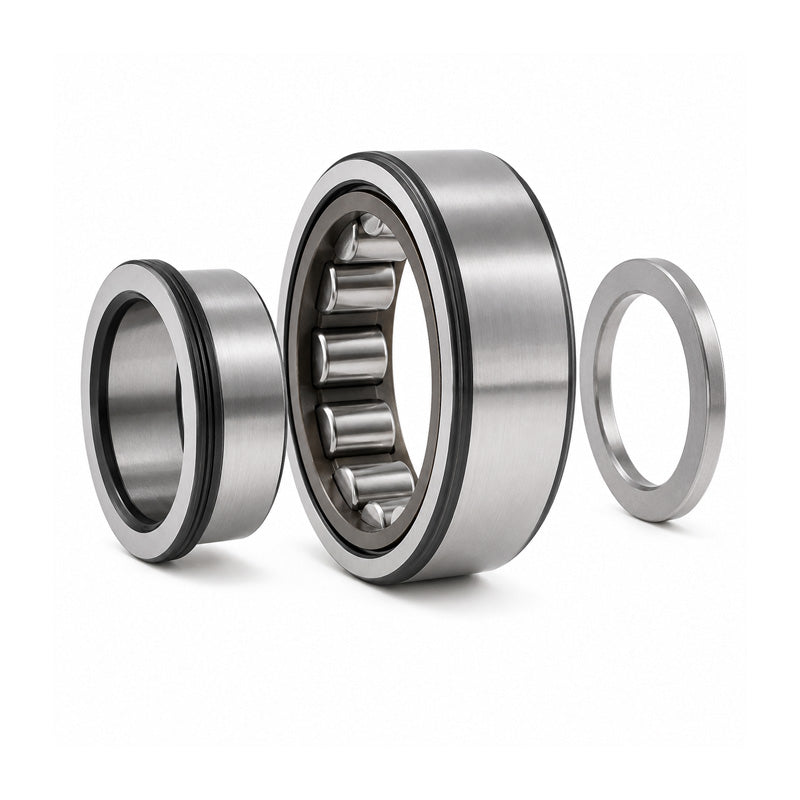

NUP2318 Budget Single Row Cylindrical Roller Bearing 90x190x64mm
NUP2318 Budget Single Row Cylindrical Roller Bearing 90x190x64mm
Out of stock
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 64mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 64mm |
| Dynamic load C | 500 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 65.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4500 rpm |
| Weight | 8.3 kg |
| Cage options | ML |
| d1 | 124mm |
| D1 | 162mm |
| F, E | 113.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| da min | 104mm |
| da max | 110mm |
| db min | 127mm |
| Da max | 176mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
