SKU: NUP2308-E-TVP2-C3

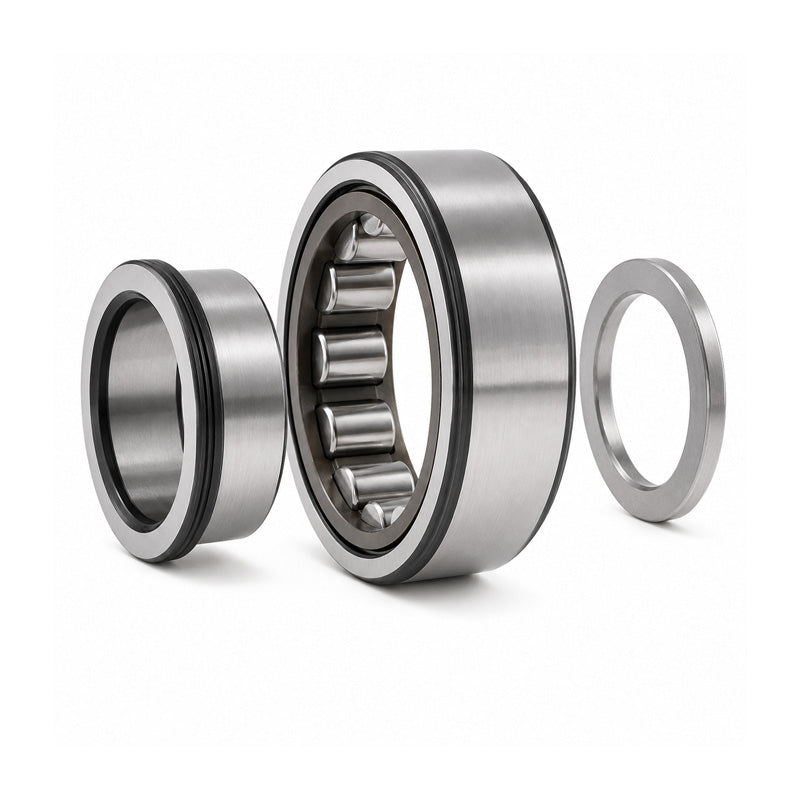

NUP2308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x33mm
NUP2308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x33mm
Out of stock
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 40 |
|---|---|
| D | 90 |
| B | 33 |
| r min | 1.5 |
| r1 min | 1.5 |
| E | 80 |
| F | 52 |
| D1 | 75.9 |
| d1 | 57.6 |
| B3 | 5.5 |
| da min | 49 |
| dc min | 60 |
| Da max | 81 |
| ra max | 1.5 |
| Dynamic load | 132000 N |
| Static load | 119000 N |
| Fatigue limit load | 20700 N |
| Limiting speed | 7500 rpm |
| Reference speed | 6000 rpm |
| Weight | 0.999 kg |
