SKU: NUP2224-EU

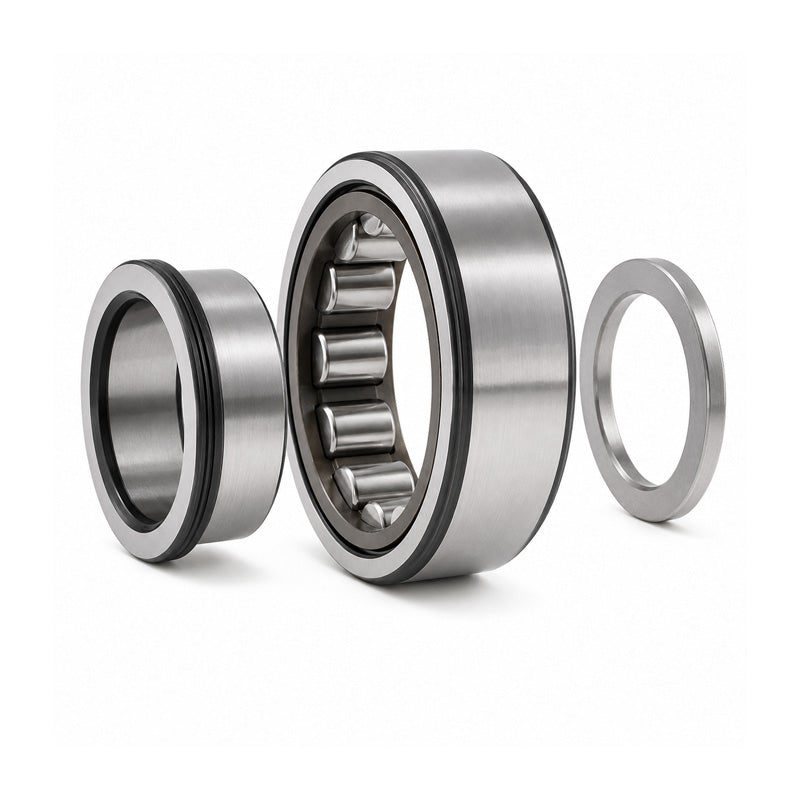

NUP2224 Budget Single Row Cylindrical Roller Bearing 120x215x58mm
NUP2224 Budget Single Row Cylindrical Roller Bearing 120x215x58mm
Out of stock
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 58mm |
| Dynamic load C | 520 kN |
| Static load Co | 630 kN |
| Fatigue load limit Pu | 72 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 8.7 kg |
| Cage options | ML |
| d1 | 153mm |
| D1 | 188mm |
| F, E | 143.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| da min | 132mm |
| db min | 156mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
